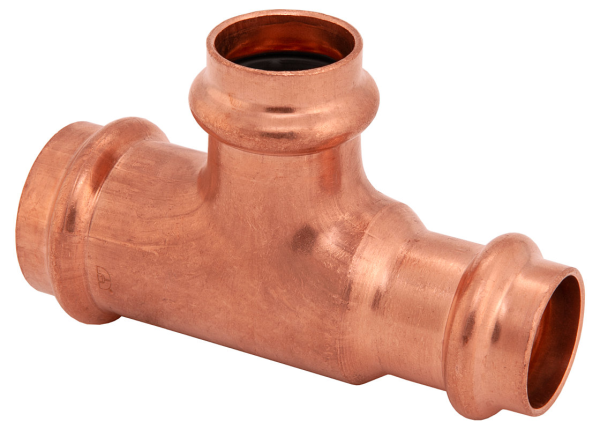

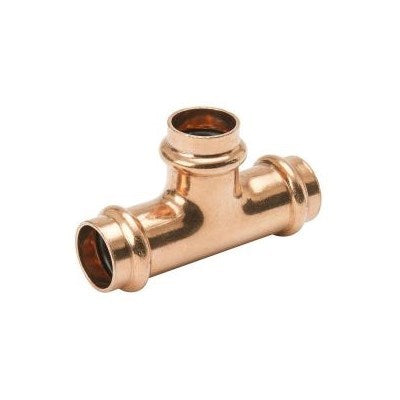

Bmi 47454 Wrot Copper Press-Fit Tee 1-1/4X1-1/4X3/4 PressxPressxPress

Product Description

This BMI 47454 Wrot Copper Press-Fit Tee is designed for reliable plumbing connections. It features a 360-degree Leak Detection Design, allowing for easy identification of unpressed connections during pressure testing. Compatible with all major brands of pressing tools, this lead-free fitting complies with UPC/CUPC and IAPMO PS 117-2016 standards. It is suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free Wrot Copper Press-Fit Tee with Leak Detection Design, suitable for various plumbing and HVAC applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47454

Technical Specifications

• Brand: BMI
• MPN: 47454
• Type: Press-Fit Tee
• Material: Wrot Copper
• Size: 1-1/4X1-1-4X3/4 PressxPressxPress
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Materials Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
