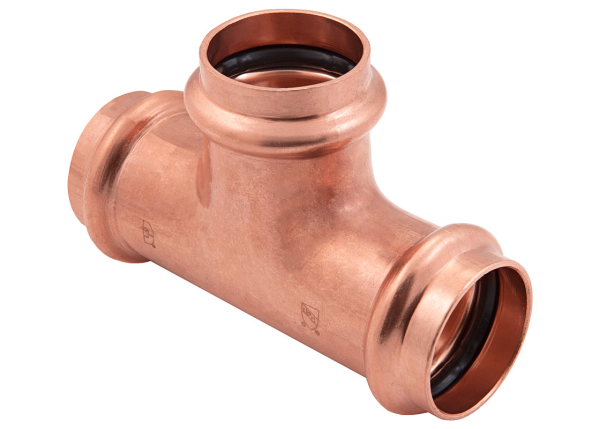

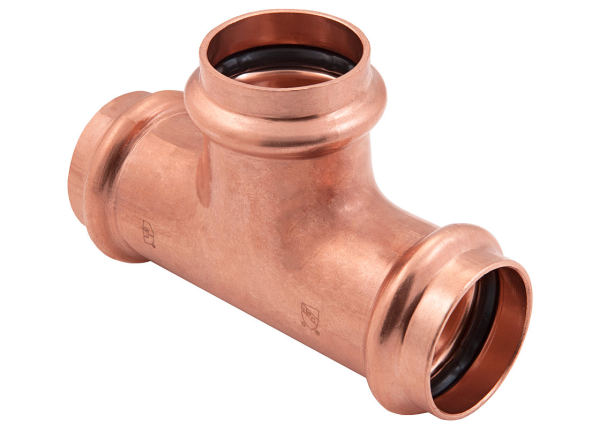

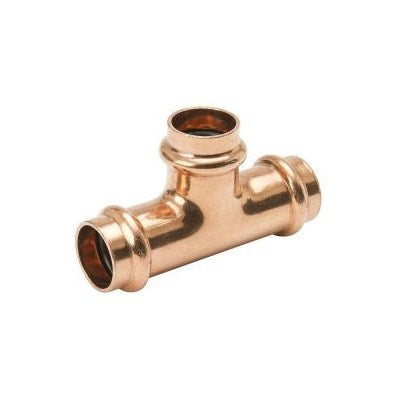

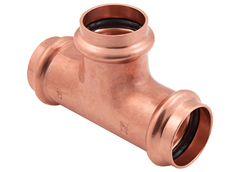

Bmi 47407 press tee 1-1/4 inches

Product Description

The BMI 47407 Press Tee is a 1-1/4 inch wrot copper press-fit tee fitting for plumbing and HVAC systems. It supports potable water, hydronic heating, chilled water, compressed air, non-medical gases, and low-pressure steam. Featuring a 360-degree leak detection design, it ensures secure installations. Made from high-quality copper (ASME/ASTM B42 C12200), this lead-free fitting meets NSF/ANSI STANDARD 61 - 372. It operates at a maximum working pressure of 200 psi and a temperature range of 0 to 250°F.

• Compatible with all major brands of pressing tools.
• Features 360-degree leak detection design for unpressed connections.
• Lead-free and compliant with NSF/ANSI STANDARD 61 - 372 for drinking water.

Product Highlights

Durable copper press-fit tee with leak detection, suitable for various plumbing and HVAC systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47407

Technical Specifications

• Connection Type: Press
• Fitting Type: Tee
• Size: 1-1/4 inch
• Working Pressure: 200 psi Max
• Max Test Pressure: 600 psi Max
• Low Pressure Steam: 15 psi Max
• Working Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum: 29.2 inch Mercury @ 68 F (20 C)
• Material Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliances: ISO9001, ISO14001
