Bmi 47355 elbow wrot 3/4 ftg x prf 90 degree

Product Description

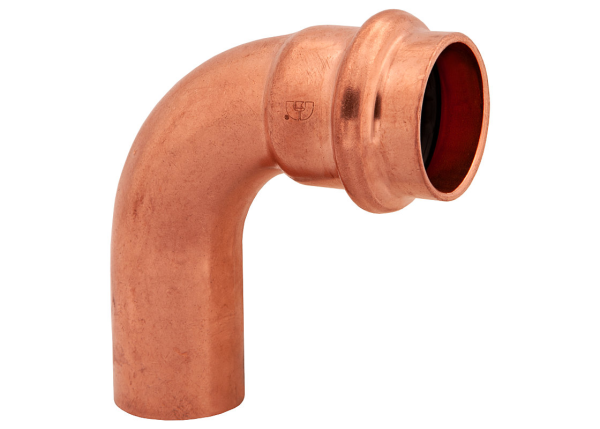

The BMI 47355 Wrot Copper Press-Fit FTG x P 90 Degree Street Elbow Fitting is designed for various applications including potable water, hydronic heating, chilled water, compressed air, non-medical gases, and low-pressure steam. This lead-free fitting features a 360-degree leak detection design, ensuring easy identification of unpressed connections during pressure testing. It is compatible with all major brands of pressing tools and complies with UPC/CUPC and IAPMO PS 117-2016 standards, offering a reliable and permanent connection.

• Compatible with all major brands pressing tools for versatile use.
• Features a 360 Degree Leak Detection Design for easy identification of unpressed connections.
• Lead-Free and compliant with UPC/CUPC and IAPMO PS 117-2016 standards.

Product Highlights

This BMI 47355 fitting offers a leak-proof, permanent connection for potable water, heating, and gas systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47355

Technical Specifications

• Size: 3/4 inch
• Connection Type: FTG x PRF
• Angle: 90 Degree
• Material Type: Wrot
• Product Type: Elbow
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material Composition: ASME/ASTM B42 C12200 (99.9% cu)
• Compliance: Dimensions: IAPMO PS 117-2016
• Compliance: Threads: ASME/ASTM B1.20.1
• Compliance: Drinking Water: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Compliance: Other: ISO9001, ISO14001
