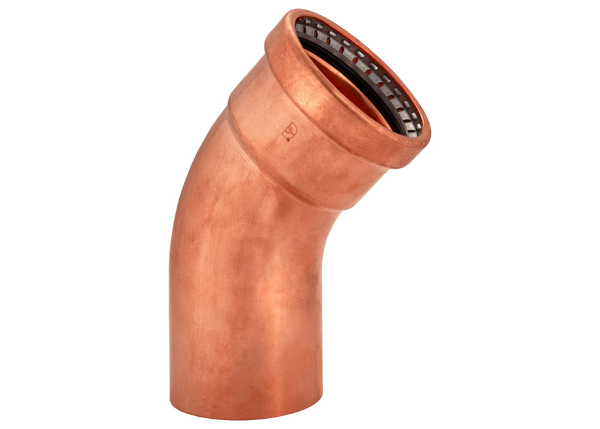

Bmi 47261 wrot copper press-fit ftg x p street elbow 3 inch 45 degree

Product Description

The BMI 47261 Wrot Copper Press-Fit FTG x P 45 Degree Street Elbow is a lead-free fitting designed for various plumbing applications, including potable water, hydronic heating, and compressed air systems. It features a 360-degree Leak Detection Design for easy identification of unpressed connections during pressure testing. This 3-inch elbow is compatible with all major brands of pressing tools and complies with UPC/CUPC and IAPMO PS 117-2016 standards, ensuring a reliable and permanent connection with a maximum working pressure of 200 psi.

• Compatible with all major brands of pressing tools for versatile installation.
• Features a 360-degree Leak Detection Design for identifying unpressed connections.

Product Highlights

Lead-free copper press-fit elbow with leak detection, suitable for potable water, hydronic heating, and compressed air.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47261

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Composition: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Certifications: ISO9001, ISO14001, UPC/CUPC
• Product Type: Elbow
• Angle: 45 Degree
• Connection Type: FTG x PRF
• Nominal Size: 3 Inch
