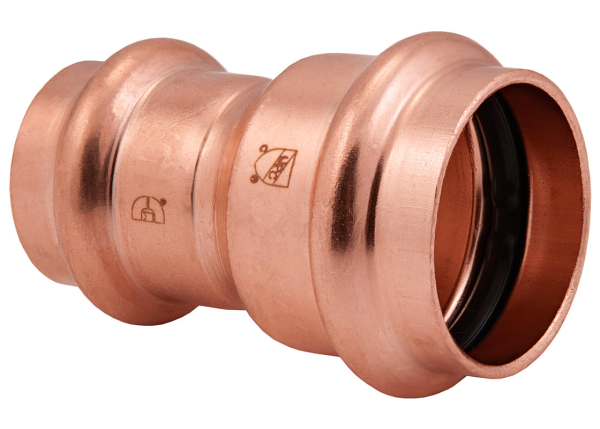

Bmi 47023 press reducing coupling 3/4 inches x 1/2 inches

Product Description

This BMI 47023 Wrot Copper Press-Fit Reducing Coupling Fitting is designed for various applications including potable water, hydronic heating, chilled water, compressed air (up to 200 psi), non-medical gases (up to 140 psi), and low pressure steam (up to 15 psi). It features a 360-degree Leak Detection Design for easy identification of unpressed connections during pressure testing. The fitting is lead-free and compliant with UPC/CUPC and IAPMO PS 117-2016 standards.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free Wrot Copper Press-Fit Reducing Coupling with 360-degree Leak Detection Design, suitable for multiple applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47023

Technical Specifications

• Connection: Press
• Group: Press Fittings
• Size: 3/4 x 1/2
• Type: Coupling - Reducing
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Compliance - Dimensions: IAPMO PS 117-2016
• Compliance - Drinking Water: NSF/ANSI STANDARD 61 - 372 (Lead free)
