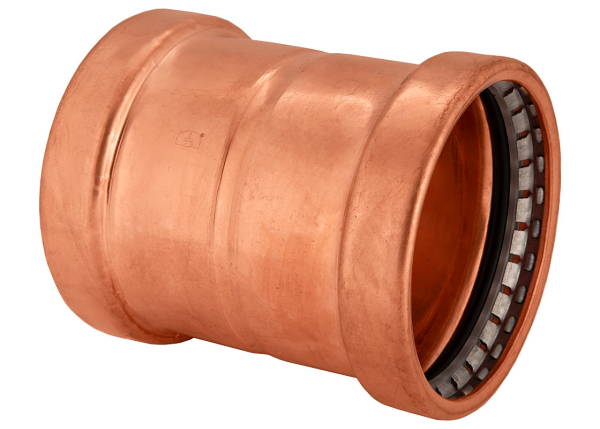

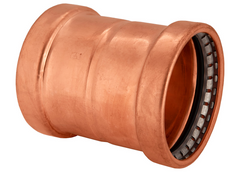

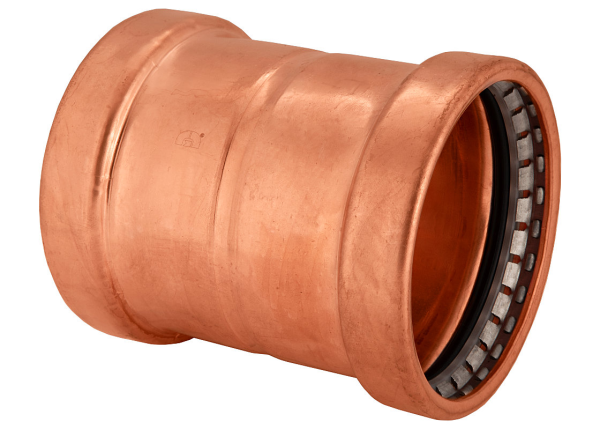

Bmi 47012 4 PressxPress Wrot Copper Press-Fit Dot Stop Coupling

Product Description

The BMI 47012 Wrot Copper Press-Fit Dot Stop Coupling is a lead-free fitting designed for potable water, hydronic heating, chilled water, and compressed air systems up to 200 psi. It features a 360-degree leak detection design for unpressed connections and is compatible with major pressing tools. This coupling is compliant with NSF/ANSI Standard 61-372 for drinking water and ISO9001. It operates within a temperature range of 0 to 250 F.

• Dot Stop Coupling
• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free wrot copper construction, suitable for various plumbing and HVAC applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47012

Technical Specifications

• Brand: BMI
• MPN: 47012
• Material: Wrot Copper
• Connection Type: Press-Fit
• Type: Coupling
• Maximum Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Operating Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Composition: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
