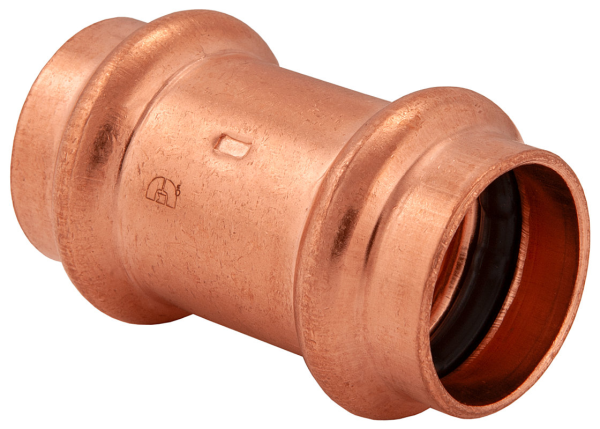

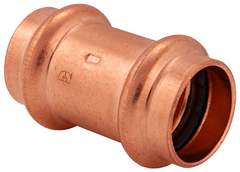

Bmi 47008 1-1/2 inches wrot copper press-fit coupling dot stop fitting

Product Description

The BMI 47008 Wrot Copper Press-Fit Coupling Dot Stop Fitting is designed for secure plumbing connections. This lead-free coupling features a 360-degree Leak Detection Design, allowing for quick identification of unpressed connections during pressure testing. It is compatible with all major pressing tools and suitable for potable water, hydronic heating, chilled water, compressed air (up to 200 psi), non-medical gases (up to 140 psi), and low-pressure steam (up to 15 psi). It complies with UPC/CUPC and IAPMO PS 117-2016 standards.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free wrot copper press-fit coupling with leak detection for reliable, permanent connections in various plumbing applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47008

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
• Nominal Size: 1-1/2 in
• Type: PRF Coupling
• Feature: DOT STOP WROT
• Connection Type: Press-Fit
• Connection: Press x Press
