Bmi 47006 Press Coupling 1 inch CUP CPL 1 PRS X PRS

Product Description

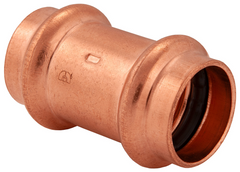

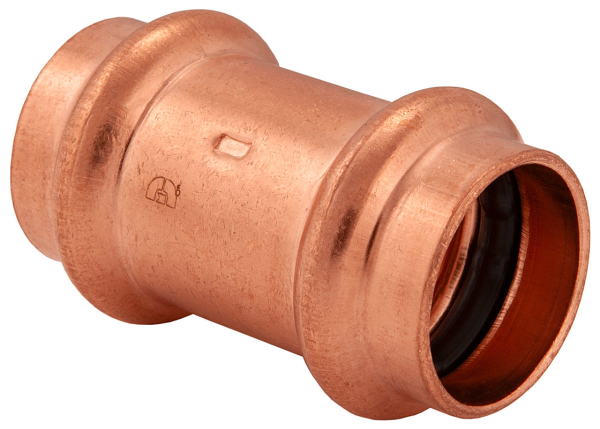

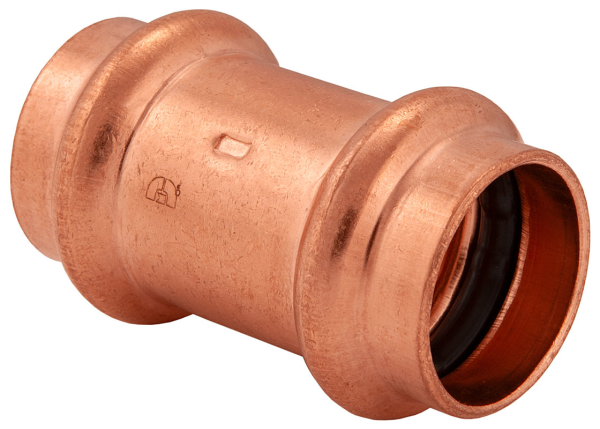

BMI 47006 is a 1" Wrot Copper Press-Fit Coupling Dot Stop Fitting designed for various applications including potable water, hydronic heating, chilled water, compressed air (up to 200 psi), non-medical gases (up to 140 psi), and low-pressure steam (up to 15 psi). This lead-free coupling features a 360-degree leak detection design, ensuring unpressed connections are easily identified during pressure testing. It is compatible with major brands of pressing tools and suitable for ASME/ASTM B88 standard K, L, and M hard copper tubing.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

This BMI 47006 coupling offers a lead-free, durable connection with a unique leak detection feature for reliable system integrity.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47006

Technical Specifications

• Alternative Part Number: CUP CPL 1 PRS X PRS
• Working Pressure: 200 psi Max
• Maximum Test Pressure: 600 psi Max
• Low Pressure Steam Rating: 15 psi Max
• Working Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum Rating: 29.2 inches Mercury at 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% Copper)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead Free)
• Other Compliance: ISO9001, ISO14001
• Dimensions: 52 mm L
• End Style: Press-Fit
• Fitting Type: Coupling
• Nominal Size: 1 inch
