Bmi 46504 1/2 PRF Cap Carbon Gas

Product Description

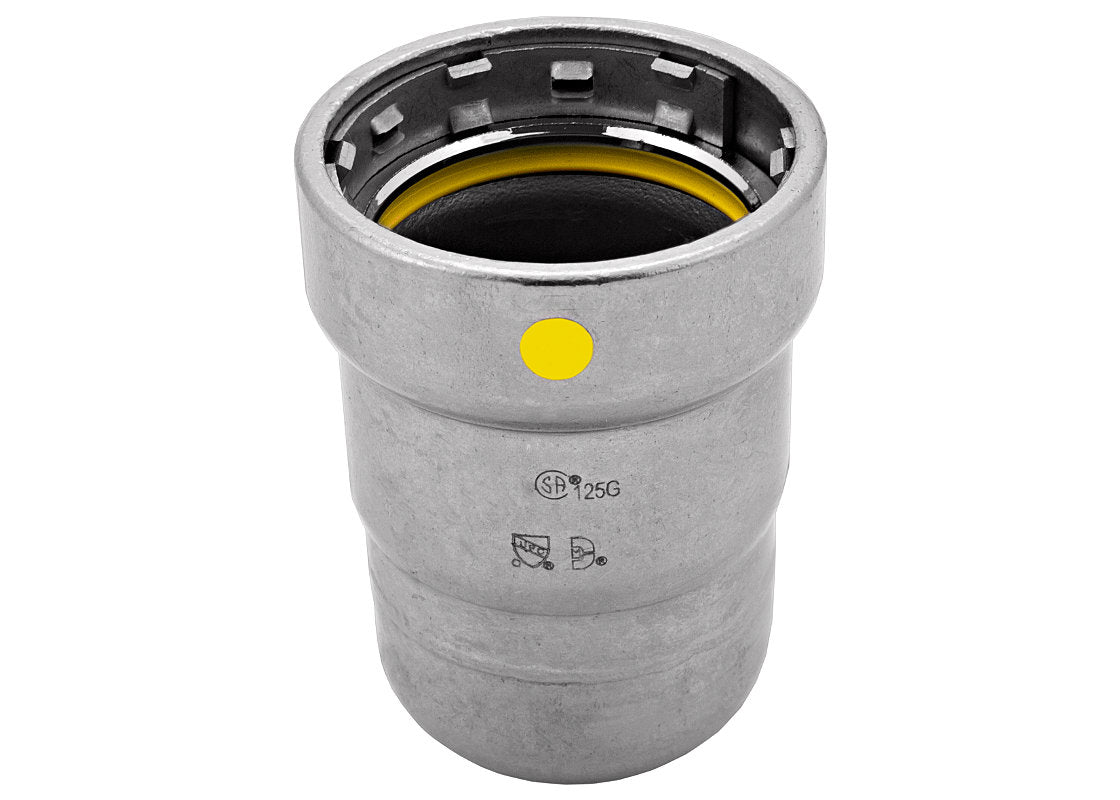

The BMI 46504 is a 1/2 inch carbon press cap for secure pipe connections. It features an HNBR sealing element and a stainless-steel ring with two rows of teeth for a firm grip. Protected by a Zinc-Nickel coating, this fitting is 100% factory tested. It supports a maximum working pressure of 125 psi and operates from -40°F to 180°F. Quick installation uses electro-hydraulic press tools, compatible with most commercial tools. It is suitable for Sch. 40 Black Iron or Galvanized fittings.

• Equipped with an HNBR sealing element and a stainless-steel ring with two rows of teeth for a firm pipe grip.
• Protected with a Zinc-Nickel coating and 100% factory tested before individual bagging.
• Quick installation process using electro-hydraulic press tools, compatible with most commercial pressing tools.

Product Highlights

Secure 1/2 inch carbon press cap with HNBR seal, Zinc-Nickel coating, and quick electro-hydraulic press tool installation.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 46504

Technical Specifications

• Size: 1/2 inch
• Working Pressure: 125 psi max
• Working Temperature: -40°F to 180°F
• Compatible Fittings: Sch. 40 Black Iron or Galvanized
• Compatible Pipe Standards: ASTM A53, A106, A135, A795
