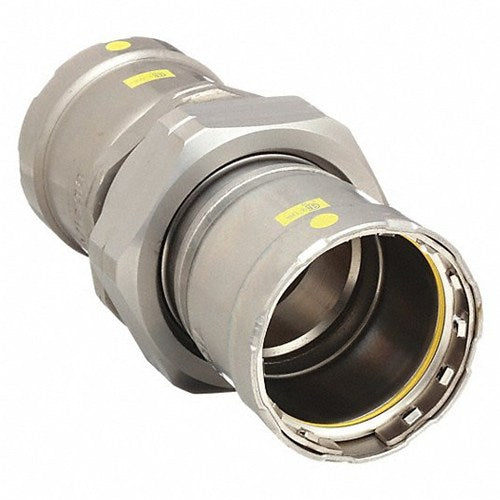

Bmi 46106 carbon press union 1 inch

Product Description

The BMI 46106 Carbon Press Union is a 1-inch fitting designed for secure pipe connections in plumbing and industrial applications. It features a HNBR sealing element and a stainless-steel ring with two rows of teeth for firm pipe grip. Protected by a Zinc-Nickel coating, this fitting is 100% factory tested. Compatible with ASTM A53, A106, A135, A795 standard pipes, it supports a maximum working pressure of 125 psi and operates from -40°F to 180°F.

• Easily recognizable with distinct yellow markings
• Equipped with a HNBR sealing element and stainless-steel ring designed with two rows of teeth that grip the pipe and lock the fitting firmly in place
• Protected with a Zinc-Nickel coating and 100% factory tested before being individually bagged

Product Highlights

Quick installation using electro-hydraulic press tools, ensuring fast identification of unpressed connections

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 46106

Technical Specifications

• Size: 1 inch
• Working Pressure: 125 psi max
• Working Temperature: -40°F to 180°F
• Pipe Compatibility Standards: ASTM A53, A106, A135, A795
• Fitting Material: Sch. 40 Black Iron or Galvanized
