Bmi 35008 coupling fitting 150 psig 1-1/2 inches

Product Description

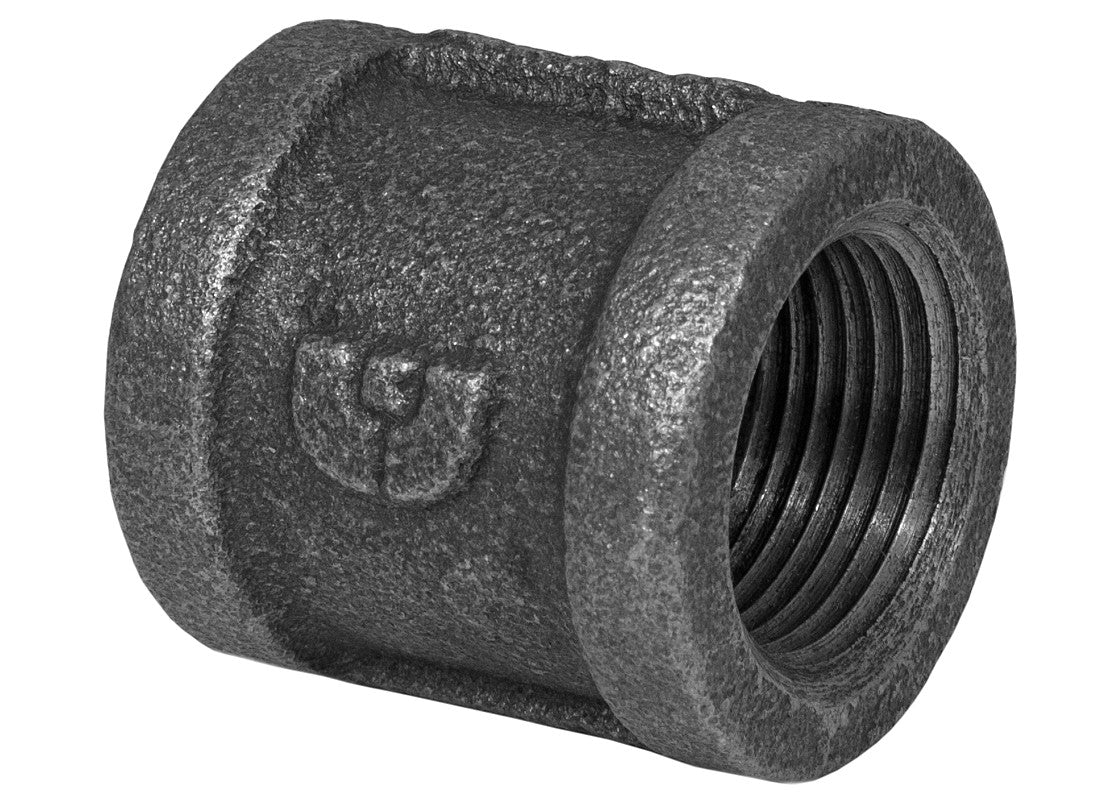

The BMI 35008 coupling fitting is a 1-1/2" malleable iron component designed for reliable connections in piping systems. Rated for Class 150 psig, this fitting operates across a wide temperature range from -20 to 350 degrees F. It complies with ASTM A197 / A197M for material standards and ASME B16.3, B16.14 for fittings dimensions, ensuring robust performance and adherence to industry specifications.

• Class 150 psig pressure rating for demanding applications.
• Operates effectively across a wide temperature range from -20 to 350 degrees F.
• Certified by cULus, UPC, ISO9001, and CRN for quality assurance.

Product Highlights

Durable malleable iron coupling meeting industry standards for pressure and temperature.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 35008

Technical Specifications

• Pressure Class: 150 psig
• Operating Temperature Range: -20~150 degrees F, -29~26 degrees C (300 psig); 200 degrees F, 93 degrees C (265 psig); 250 degrees F, 121 degrees C (225 psig); 300 degrees F, 149 degrees C (185 psig); 350 degrees F, 177 degrees C (150 psig)
• Certifications: cULus, UPC, ISO9001, CRN
• Material Standard: ASTM A197 / A197M
• Fittings Dimensions Standard: ASME B16.3, B16.14
• Unions Dimensions Standard: B16.39
• Threads Standard: ASME B1.20.1, ISO 7-1
• Nominal Size: 1-1/2"
• Color: Black
• Fitting Type: Coupling
• Material: Malleable Iron
