Bmi 35007 coupling 1-1/4 in nominal 150 lb

Product Description

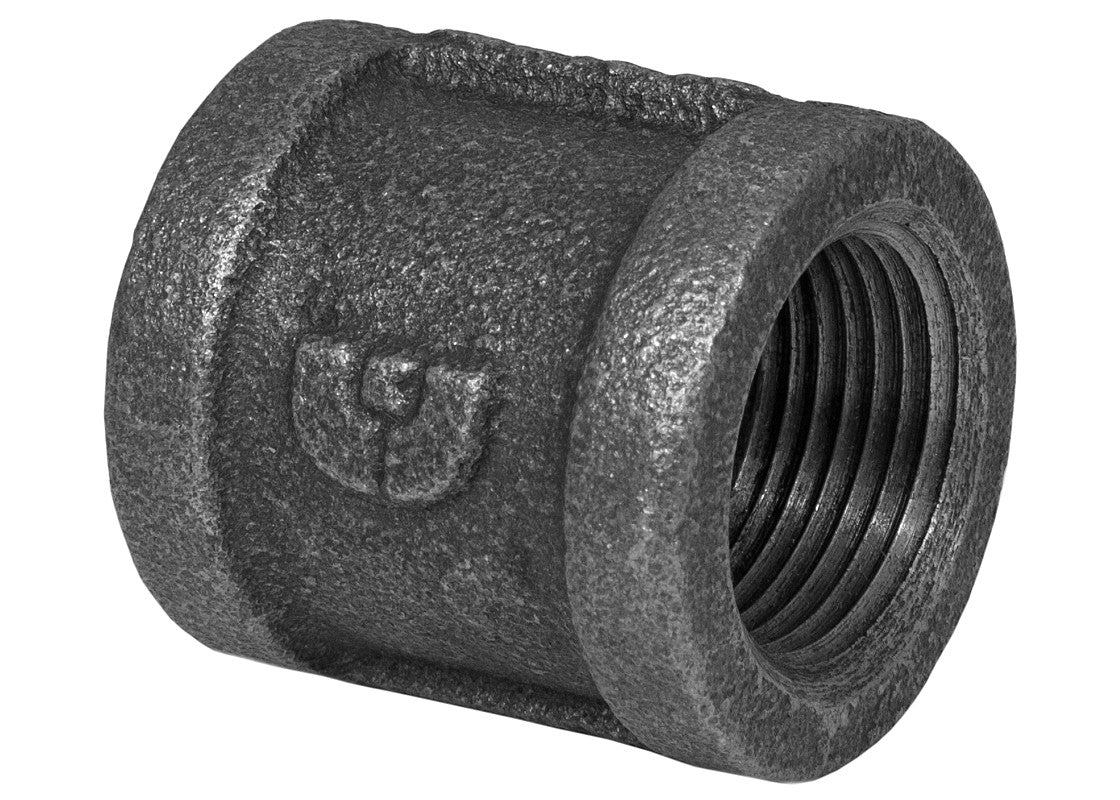

The BMI 35007 Coupling is a 1-1/4 inch nominal fitting designed for various piping applications. Constructed from malleable iron, this coupling is rated for 150 lb pressure class. It is suitable for connecting pipes in systems requiring robust and durable connections. This fitting complies with ASTM A197 / A197M for materials and ASME B16.3, B16.14 for dimensions, ensuring reliable performance in industrial and commercial settings.

• Constructed from durable malleable iron for long-lasting performance.
• Features a 1-1/4 inch nominal size and 150 lb pressure class.
• Complies with industry standards including ASTM A197 / A197M and ASME B16.3, B16.14.

Product Highlights

Durable malleable iron coupling for 1-1/4 inch pipes, rated at 150 lb pressure, meeting key industry standards.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 35007

Technical Specifications

• Fitting/Connector Type: Coupling
• Material: Malleable Iron
• Nominal Size: 1-1/4 in
• Pressure Class: 150 lb
• Operating Temperature Range (F): -20~150 degrees F (300 psig), 200 degrees F (265 psig), 250 degrees F (225 psig), 300 degrees F (185 psig), 350 degrees F (150 psig)
• Operating Temperature Range (C): -29~26 degrees C (300 psig), 93 degrees C (265 psig), 121 degrees C (225 psig), 149 degrees C (185 psig), 177 degrees C (150 psig)
• Certifications: cULus, UPC, ISO9001, CRN
• Material Standards: ASTM A197 / A197M
• Dimensional Standards: Fittings ASME B16.3, B16.14; Unions B16.39
• Thread Standards: ASME B1.20.1, ISO 7-1
