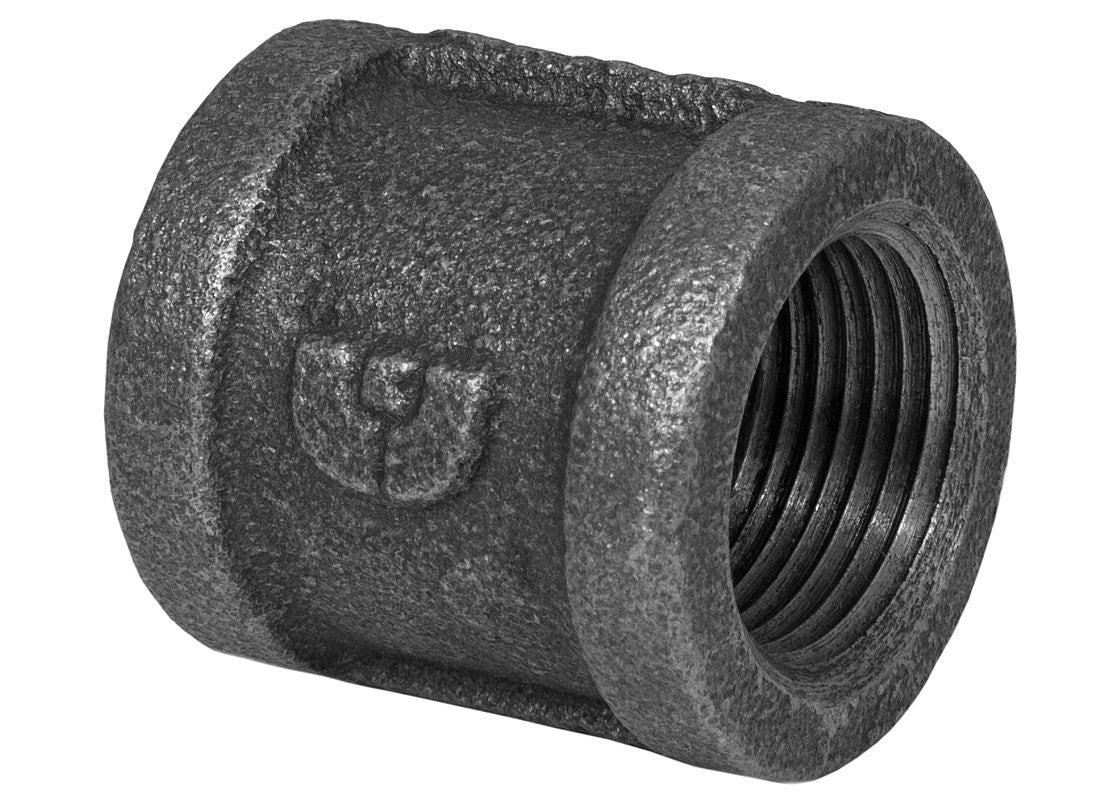

Bmi 35004 coupling 150 lb 1/2 in nominal

Product Description

The BMI 35004 is a 1/2 inch nominal coupling fitting, manufactured from malleable iron, and rated for 150 lb pressure. This robust fitting is designed for various industrial and commercial applications, offering reliable performance and compliance with multiple industry standards. It can operate across a wide temperature range, from -20 to 350 degrees F, depending on the pressure.

• Class #150 psig rating for robust performance
• Wide temperature operating range up to 350 degrees F (177 degrees C)
• Certified by cULus, UPC, ISO9001, and CRN for quality assurance

Product Highlights

Durable malleable iron coupling with 150 lb pressure rating, suitable for diverse temperature conditions, and certified to multiple industry standards.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 35004

Technical Specifications

• Color: Black
• Fitting/Connector Type: Coupling
• Material: Malleable Iron
• Nominal Size: 1/2 in
• Pressure Class: 150 lb
• Operating Temperature Range (300 psig): -20 to 150 degrees F (-29 to 26 degrees C)
• Operating Temperature (265 psig): 200 degrees F (93 degrees C)
• Operating Temperature (225 psig): 250 degrees F (121 degrees C)
• Operating Temperature (185 psig): 300 degrees F (149 degrees C)
• Operating Temperature (150 psig): 350 degrees F (177 degrees C)
• Certifications: cULus, UPC, ISO9001, CRN
• Material Compliance Standard: ASTM A197 / A197M
• Dimensions Compliance Standard: ASME B16.3, B16.14 (Fittings); ASME B16.39 (Unions)
• Threads Compliance Standard: ASME B1.20.1, ISO 7-1
