Blustream WMF51 Wireless Multiview Presentation Switch 12V/1.5A (1 Unit)

Brand: BLUSTREAM
SKU: WMF51
Availability: Out Of Stock
$1,700.45
$1,700.45
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

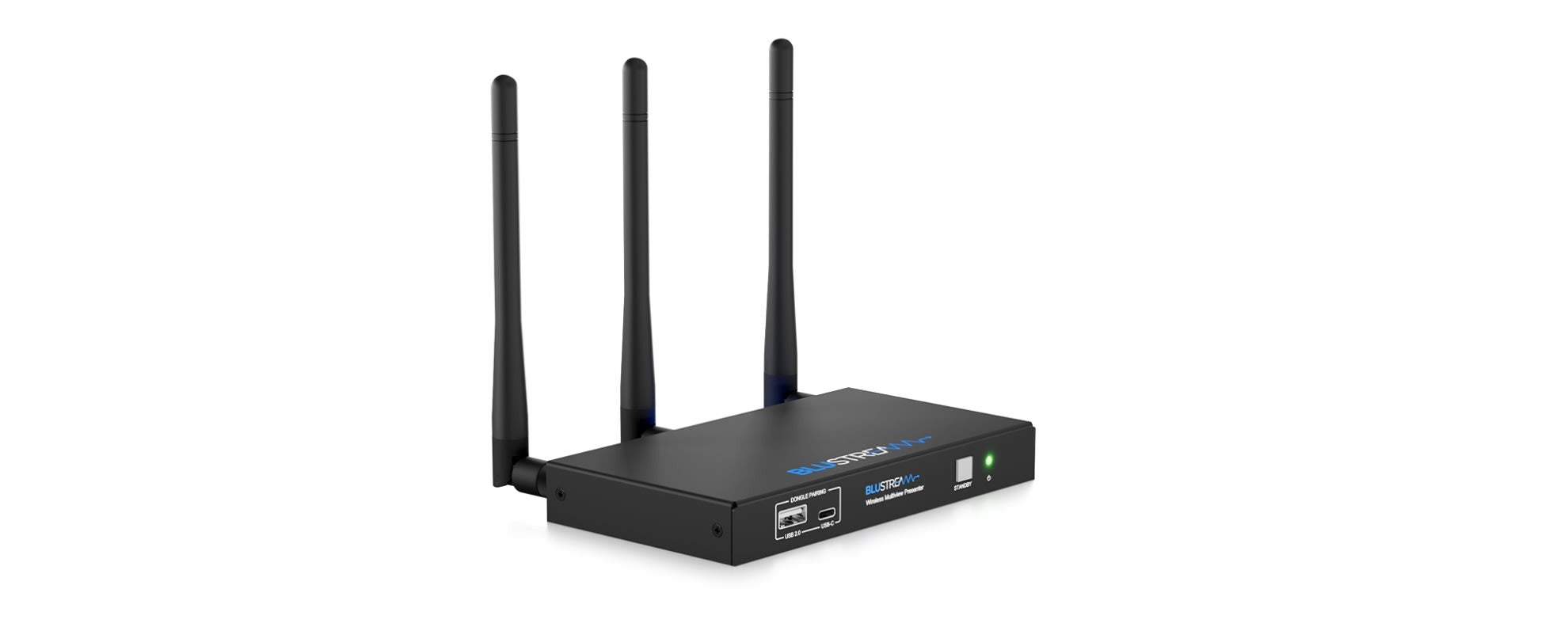

The Blustream WMF51 is a 4K multi-format wireless multiview presentation switch that accepts AirPlay, Miracast and Chromecast inputs and outputs to a single HDMI display. It supports up to four concurrent video signals with configurable layouts and includes a built-in video scaler with output timing up to 4K 60Hz 4:2:0. Network and control options include a localized 2.4/5G WiFi hotspot, dual LAN with PoE, web GUI, RS-232 and front-panel control.

  • Multiview up to 4 concurrent video signals with in-built scaler to 4K 60Hz 4:2:0 and configurable layouts
  • Wireless and network: AirPlay/Miracast/Chromecast support, localized 2.4/5G WiFi hotspot, dual LAN (1x 1000Mbps, 1x 100Mbps) and Class 0 IEEE 802.3af PoE
  • Connectivity and control: 1x HDMI output, USB touch-back (USB 3.0), 3.5 mm analog audio breakout, RS-232, web GUI and OSD preview

Product Highlights

4K 4-way multiview presentation switch with AirPlay/Miracast/Chromecast support, localized WiFi hotspot, dual LAN with PoE, USB touch-back and analog audio breakout.

Product Information

Standard Information

  • Brand: BLUSTREAM
  • Manufacturer Part Number: WMF51
Technical Specifications
Model
WMF51
Product type
4K multi-format multi-view presentation switch
Supported inputs
AirPlay, Miracast, Chromecast, Blustream wireless dongle
Output
1 x HDMI Type A, 19-pin, female
Multiview
Up to 4 concurrent video signals with configurable screen layout
Video scaling
In-built video scaler, output timing up to 4K 60Hz 4:2:0
WiFi hotspot
Localized 2.4G/5G WiFi hotspot (point-to-point up to 1080p)
LAN
Dual LAN (2 x RJ45: 1 x 1000Mbps, 1 x 100Mbps)
USB
1 x USB 3.0 Type A (touch-back only); 1 x USB 2.0 Type A (pairing); 1 x USB Type C (pairing)
WiFi antennas
3 x SMA female connectors, MIMO antennas (2.4G & 5G, IEEE 802.11 b/g/n/ac up to 1200Mbps)
WiFi encryption
AES WPA PSK, WPA2 PSK
Audio output
1 x 3.5mm stereo jack (2-channel analog audio)
RS-232
1 x 3-pin Phoenix connector
Control
Front panel, RS-232, TCP/IP, web GUI, OSD preview
PoE
Class 0 IEEE 802.3af PoE
Power supply
Class 0 IEEE 802.3af PoE PD or 12V/1.5A DC
Power consumption (standby)
3.25 W
Power consumption (fully loaded)
11 W
Operating temperature
0 C to 45 C (32 F to 113 F)
Storage temperature
-20 C to 70 C (-4 F to 158 F)
Dimensions (W x H x D)
165 mm x 22 mm x 90 mm (excluding antennas) / 6.50 x 0.87 x 3.54 inches
Certifications
CE, FCC, RoHS, UKCA
HDCP Support
No
Items included
WMF51 unit; 3-pin RS-232 terminal connector; 3x antennas; mounting kit; 12V/1.5A DC power supply; quick reference guide
