Blue White U-30200P Flow Meter | 2 PVC Vertical Up Flow | 40-150 GPM

Product Description

The Blue-White U-30200P Flow Meter is designed for precise measurement of fluid flow in various applications. It features a one-piece machined acrylic body, ensuring durability and ease of use. This flowmeter is suitable for vertical up flow applications, with a flow range of forty to one hundred fifty gallons per minute.

• Quick installation
• High resolution dual scale for easy reading

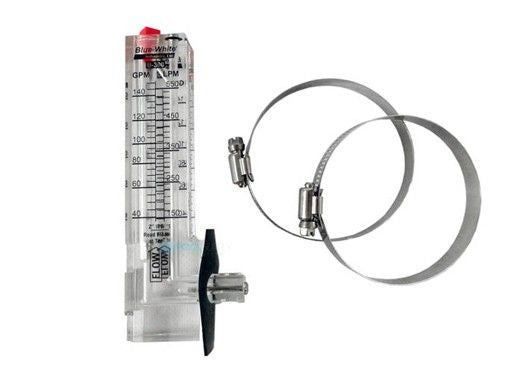

• Includes mounting clamps and gasket seal

Product Highlights

The U-30200P flowmeter offers reliable performance with minimal pressure drop and features that enhance functionality in a compact design.

Product Information

Standard Information

• Brand: Blue White Industries
• MPN: U-30200P

Technical Specifications

• Flow Range: 40-150 GPM
• Material: Machined acrylic
• Max PSI: 150 PSI at 70°F (21°C)
• Max Fluid Temp: 190°F (88°C)
• Installation Type: Vertical mount only
• Weight: 1 lb. (0.45 kg)
• Power Requirement: None
• Enclosure Rating: NEMA 4X (IP56)
