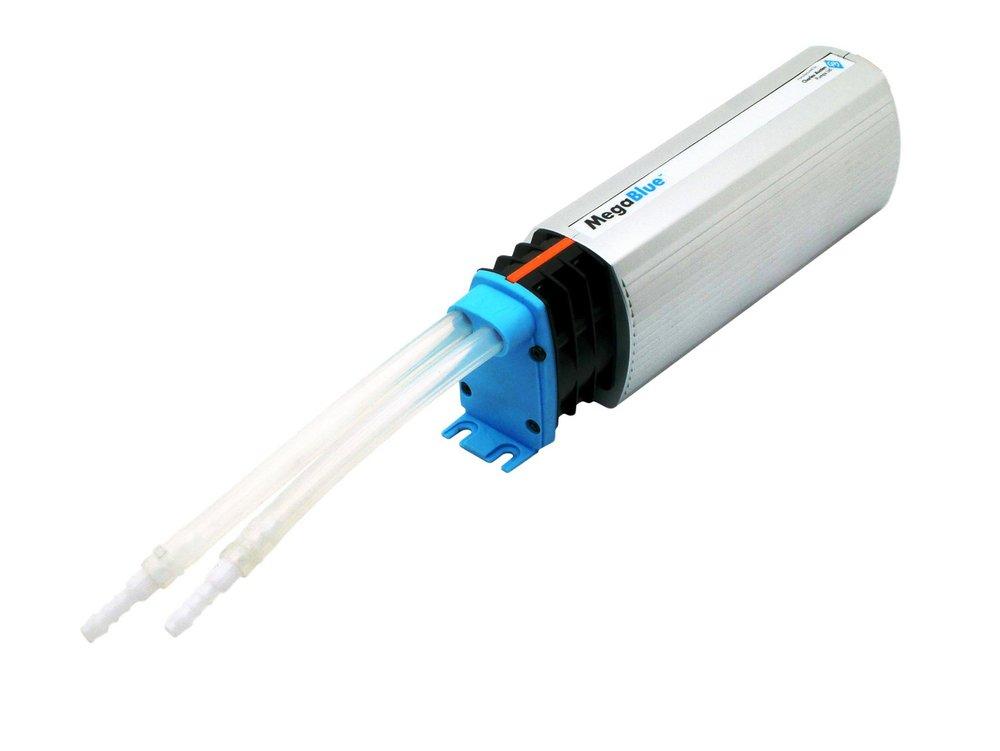

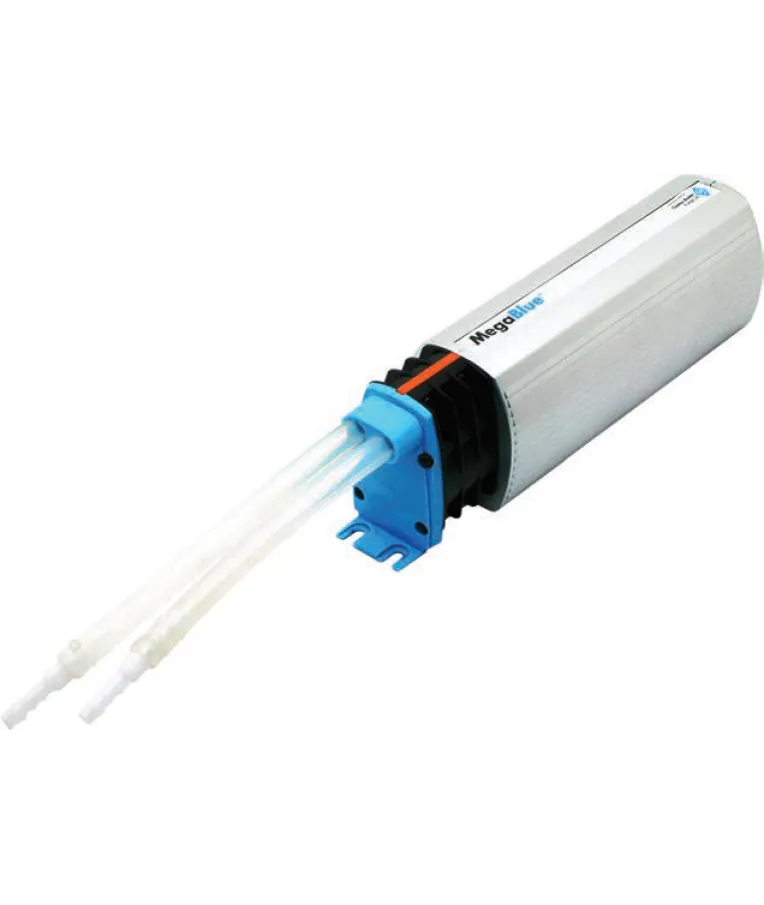

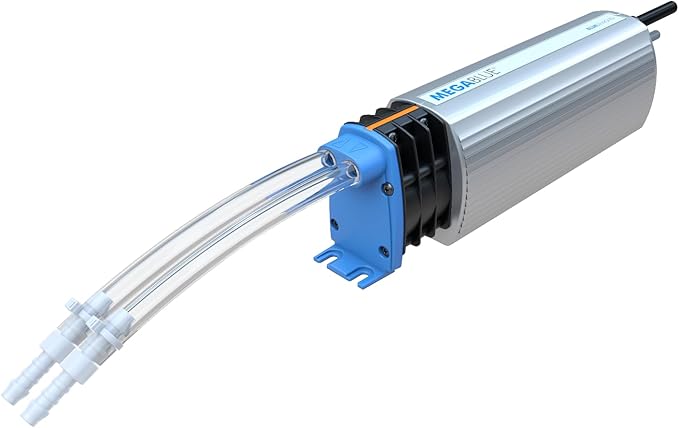

Blue Diamond Pumps X87-835 MegaBlue Condensate Pump With Reservoir 13.2GPH

Product Description

The Blue Diamond Pumps X87-835 MEGABLUE condensate pump is engineered for high-capacity HVAC systems, offering exceptional performance and reliability. Utilizing patented rotary diaphragm technology, it ensures efficient condensate removal while operating quietly. It is perfect for commercial and residential HVAC systems where efficient, quiet, and reliable condensate removal is essential.

• Capable of pumping up to 13.2 gallons per hour with a maximum head of 66.5 feet.
• Designed for whisper-quiet performance, operating at approximately 23 dBA.
• Self-priming and can handle debris-laden condensate, reducing maintenance needs.

Product Highlights

The MegaBlue condensate pump is designed for efficient condensate removal in demanding environments. It features rotary diaphragm technology, quiet operation, and is suitable for high-capacity HVAC systems.

Product Information

Standard Information

• Brand: BLUE DIAMOND PUMPS
• Manufacturer Part Number: X87-835

Technical Specifications

• Fit Type: Universal Fit
• Specification Met: UL, Plenum-rated
• Outlet Connection Type: Barb
• Body Material: Plastic
• Operation Mode: Automatic
• Manufacturer: Blue Diamond
• Part Number: X87-835
• Item model number: X87-835
• Power Source: Corded Electric
• Voltage: 230 Volts
• Flow Rate: 13.2 GPH
• Max Flow (Metric): 50 L/Hour
• Max Head (Metric): 20 Metres
• Max Lift (Metric): 7 Metres
• Volume: 23 dB(A)
• Max A/C KW: 14.0 - 50.0 KW
• Frequency: 50Hz
• Draw (A): 0.072A
• Power (W): 12W
• Power (VA): 17.3VA
• Power Factor: 0.69
• IP Rating: IPX4
• Inlet: 8mm Straight
• Outlet: 8mm Straight
• Alarm Lead: 2 Metres
• Reservoir: 70 x 60 x 40mm
• Max Head (Imperial): 66.5 Feet
• Max Lift (Imperial): 23 Feet
• Max A/C BTU: 48000 - 170000 BTU
• Draw (A) (Imperial): 0.15A
• Power (VA) (Imperial): 17.25VA
• Inlet (Imperial): 1/4 Inch Straight
• Outlet (Imperial): 1/4 Inch Straight
• Alarm Lead (Imperial): 6.5 Feet
• Reservoir (Imperial): 3.5 x 1.5 x 1.2 Inches
• BTU Capacity: Suitable for units ranging from 48,000 to 170,000 BTU
• UL Listed:: Yes
