Blackburn WRS819 COMP STIRRUP W/CNTX 477-

Product Description

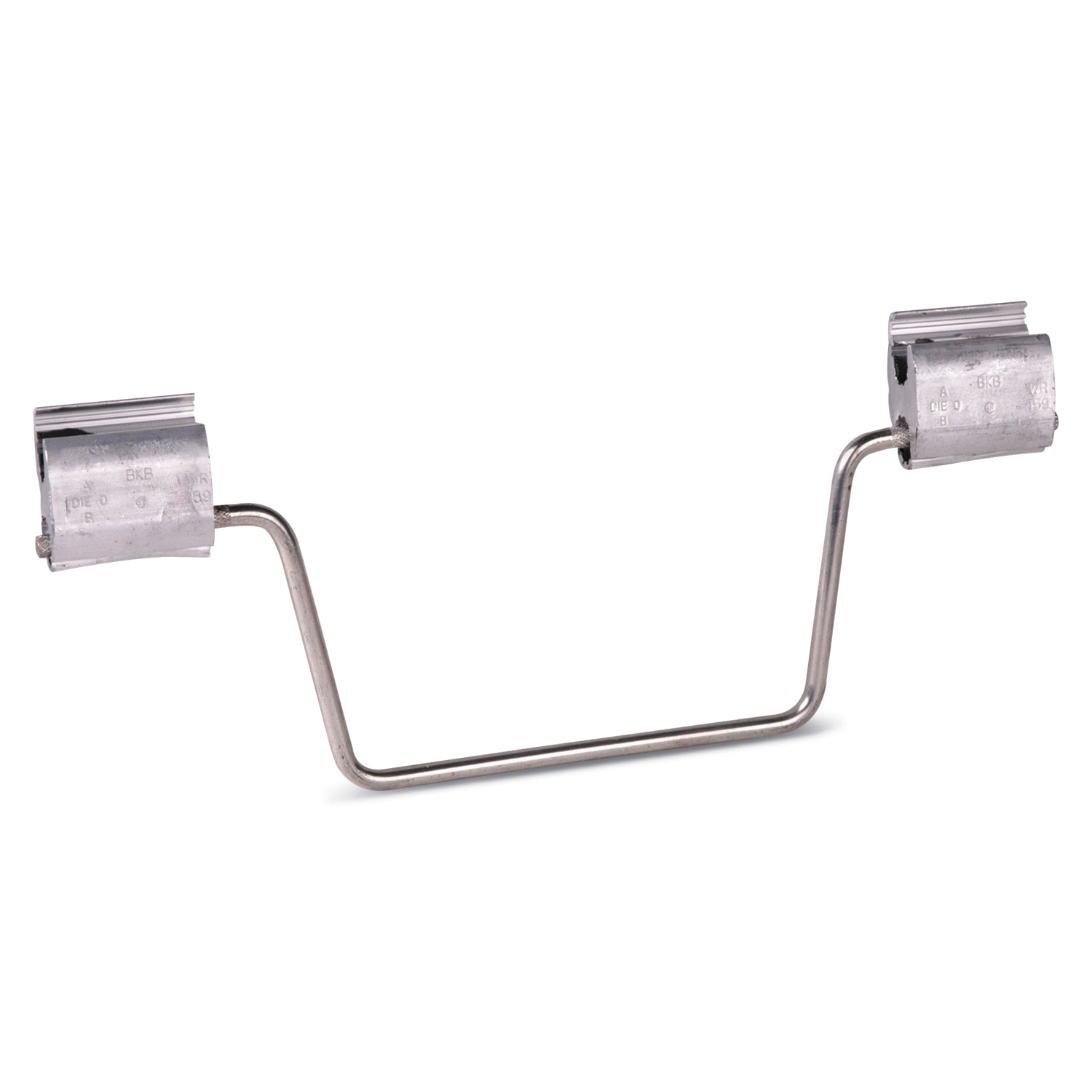

The Blackburn WRS819 is a compression stirrup connector designed for use with aluminum conductors. This product includes two H-Tap connectors on a wing-shaped stirrup. It is ideal for protecting main conductors from arcing damage. The application of this connector is vital when installing hot line taps.

• Comes with aluminum compression H-tap connector
• Wire range from 477 (26/7) to 336 kcmil ACSR
• Perfect for protecting conductors against arcs

Product Highlights

Designed for reliable connections and enhanced safety in electrical applications.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: Blackburn

Technical Specifications

• Weight: 1.25
• Size: 12-1/4 X 3-3/16 inches Tall
• Wire Size: 477 (26/7) to 266 ACSR; 500 to 336 STR AWG
• Material: Aluminum with Tin Plated Copper Bails
• Connection Type: Compression
• Application: Protect main conductors from arcing damage
• Special Features: Guards main conductors against arcs
