Blackburn WR929 Compression Tap Connector Type H Wide Range

Product Description

Blackburn WR929 is a Compression Tap Connector designed for high electrical performance. It serves a range of applications where reliable connections are necessary. This connector accommodates conductors sizes from 300 to 556 kcmil ACSR and 336 to 600 kcmil stranded wire. It is suited for ACSR, aluminum, copper, solid, and stranded conductors.

• Complies with R Die Code standards.
• Temperature rating of 90 degrees Celsius.
• Easy installation with standard compression tools.

Product Highlights

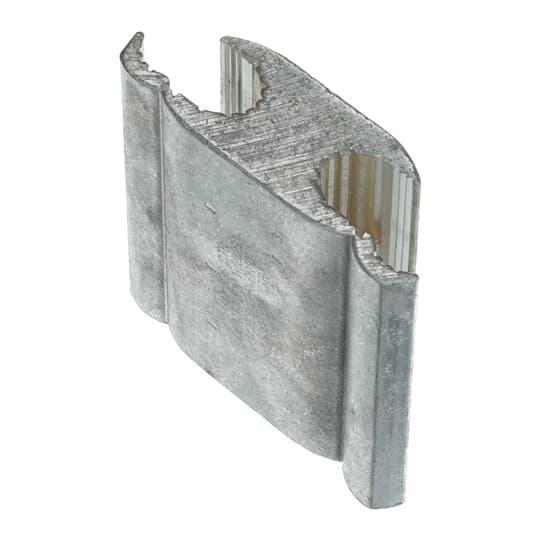

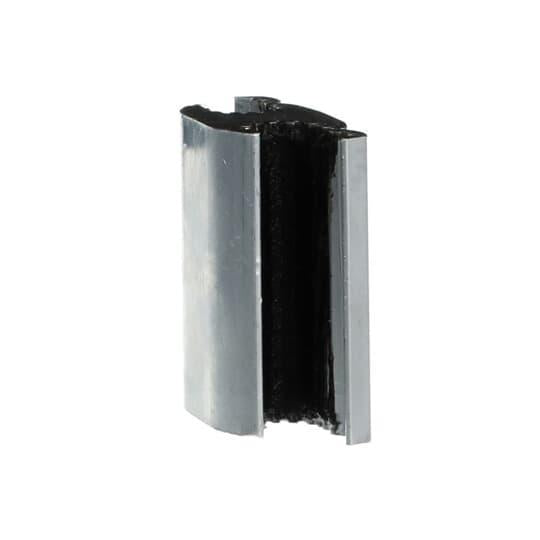

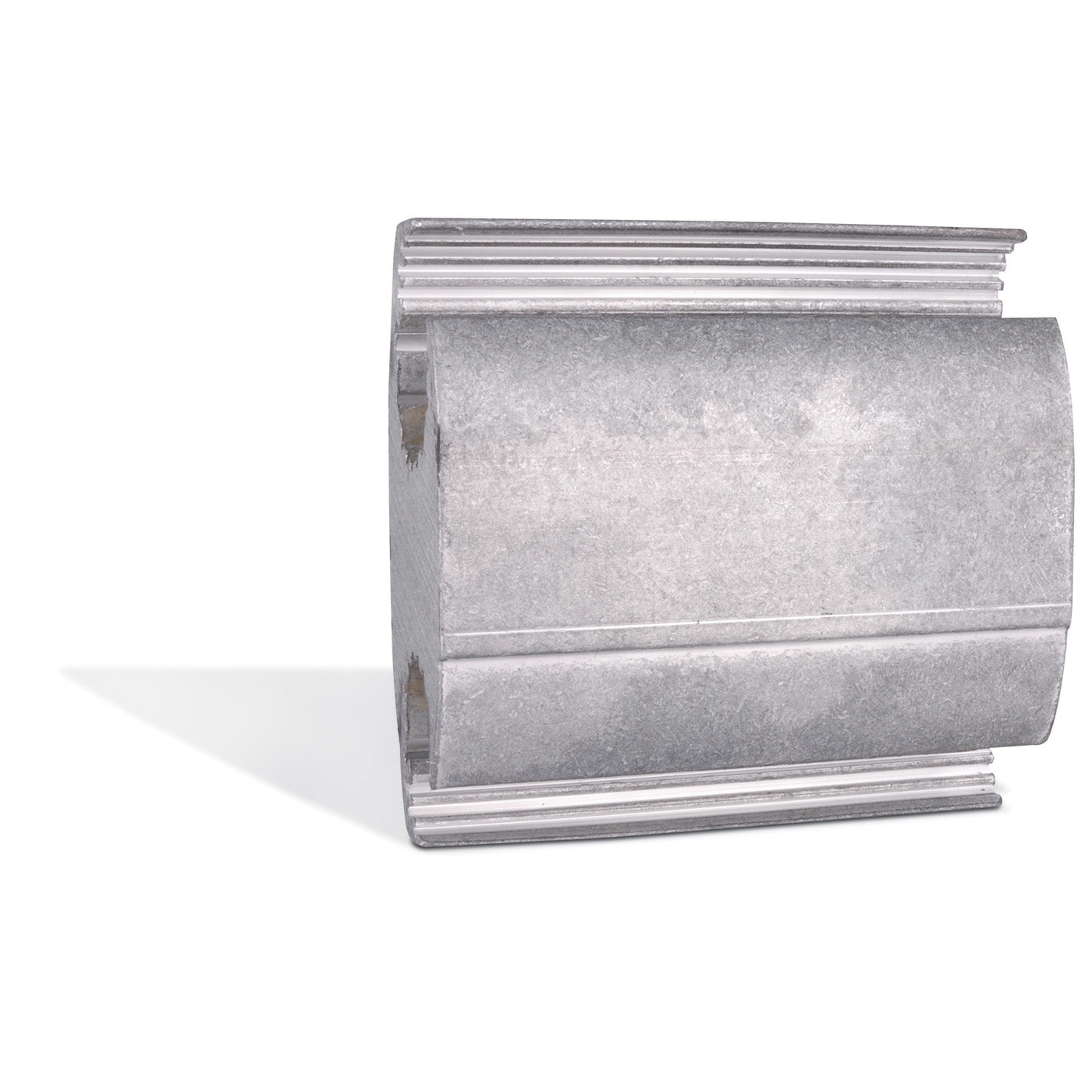

This connector features an H shape and includes fold-in tabs to lock securely during installation.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB

Technical Specifications

• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Dimensions: 4-3/4 inches long
• Series: WR Series
• Main/Run Size: 300 to 556 kcmil ACSR, 336 to 600 kcmil Stranded
• Tap Size: 556 18/1 to 300 kcmil ACSR, 600 to 336 kcmil Stranded
• Material: Aluminum
• Specifications: R Die Code, diameter range from 0.666 to 0.893 inches
• Temperature Rating: 90 degrees Celsius
• Type: Type H Wide Range
• Shape: H
