Blackburn WR159 Connector H-Tap Compression H Al 2-Cond

Product Description

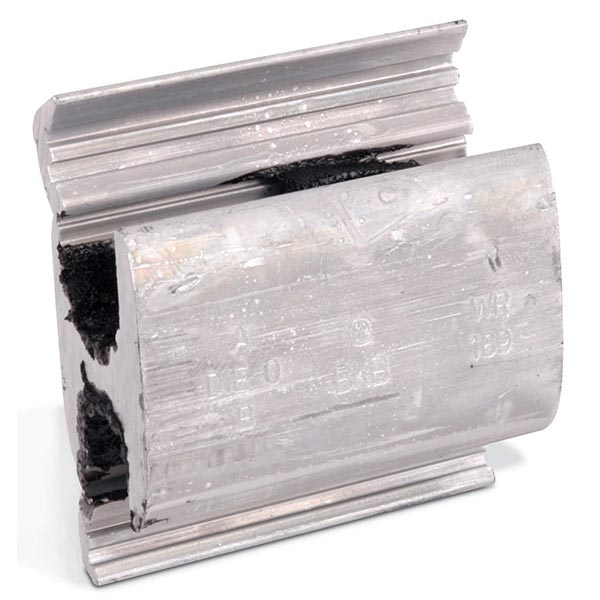

The Blackburn WR159 is a connector designed for H-tap compression. This model accommodates a range of conductor sizes, making it suitable for various applications. It works efficiently with 6 to 2 AWG ACSR conductors, 6 to 1 AWG stranded conductors, and 6 to 2 AWG solid conductors. The Blackburn WR159 connector ensures strong connections in electrical setups.

• Constructed from 1350 aluminum alloy for high strength
• Compatible with standard compression tools
• Ribbed design for improved contact

Product Highlights

This product effectively connects aluminum to aluminum and aluminum to copper conductors, providing reliable performance.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer Part No: WR159

Technical Specifications

• Type: Type WR Wide Range
• Shape: H
• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Temperature Rating: 90 deg C
• Main/Run Size: 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 2 AWG Solid
• Length: 1-7/16 inches
• Die Code: O
• Application: For combinations of aluminum to aluminum and aluminum to copper conductors
