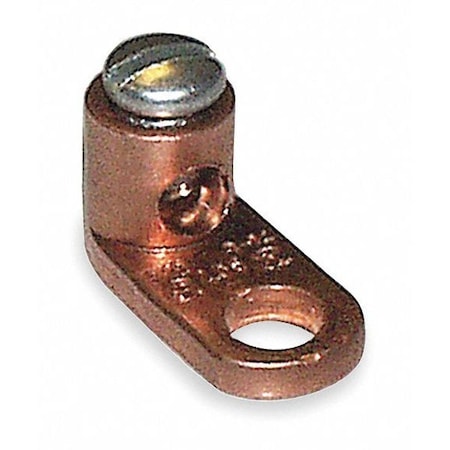

Blackburn L125BB LUG COMPRESSION STRD/SOL COPPER 1 COPPER

Product Description

The Blackburn L125BB is a non-insulated compression lug made for stranded and solid copper conductors. This product supports wire sizes from eight to one/zero AWG and is suitable for various electrical applications. It features one bolt hole for secure connections.

• Compact body design
• 1-piece construction for strength and durability
• Excellent for confined quarters

Product Highlights

This lug provides reliable electrical connections in overhead and grounding applications. Ideal for use in tight spaces, it is made from electrolytic copper for high conductivity.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: Non-Insulated
• Conductor Size: 8 to 1/0 AWG
• Tongue Size: 27/32 in L x 47/64 in W x 3/32 in THK
• Dimensions: 1-1/2 in L
• Number of Bolt Holes: 1
• Material: Copper
• Temperature Rating: 194 Degrees F
• Voltage Rating: 1,000 V
