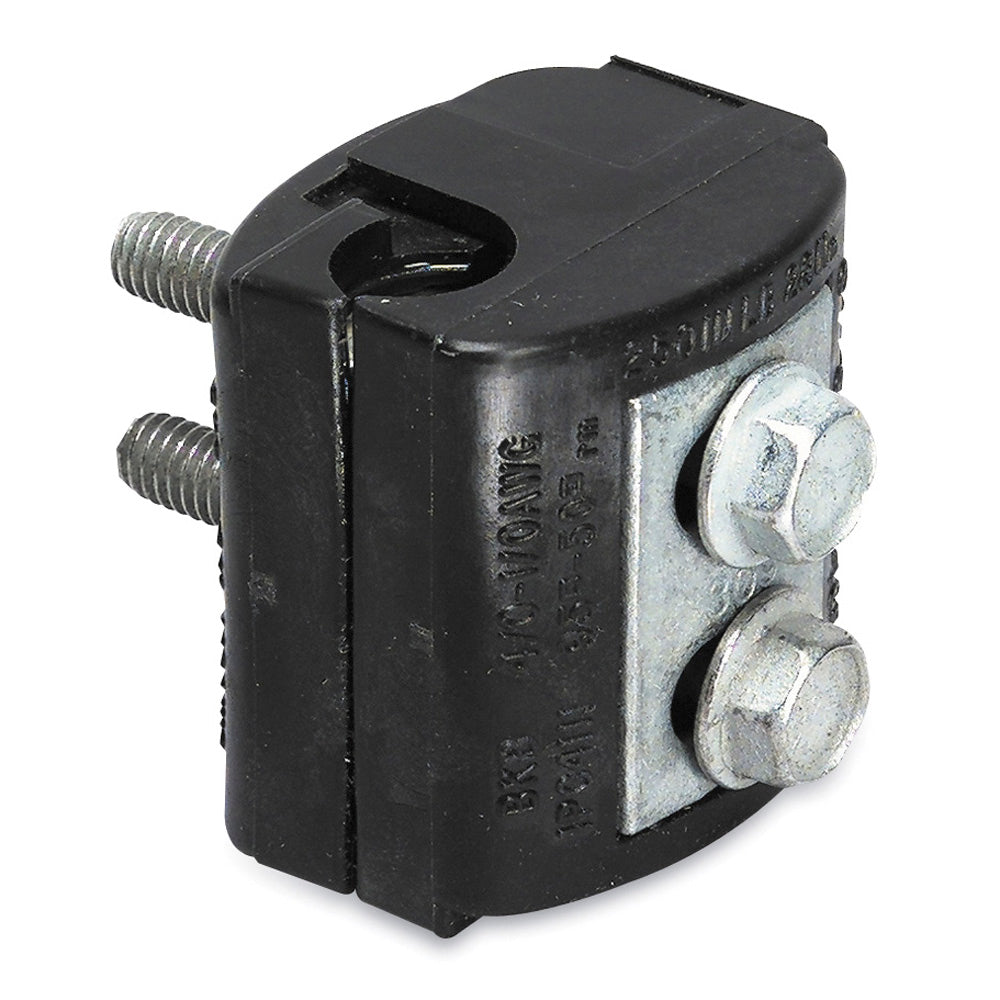

Blackburn IPC5041 Connector Piercing Insulation Al/Copper

Product Description

The Blackburn IPC5041 is a piercing insulation connector designed for aluminum and copper conductors. This product is suitable for conductor sizes ranging from four to four aught AWG. It is rated for a voltage of six hundred VAC and can eliminate the need for insulation stripping. This connector features a TiN coating for durability and is designed for use on insulated conductors only.

• Connects 4 to 4/0 AWG aluminum or copper conductors
• No insulation stripping needed for installation
• Durable TiN coating for enhanced performance

Product Highlights

The IPC5041 performs well in non-tension applications and is suitable for hot line installations.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB - Installation Products

Technical Specifications

• Conductor Size: 4 to 4/0 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Dimensions: 2-1/8 in L x 2 in W
• Weight: 79.5 lb
• Mounting Holes: 1
