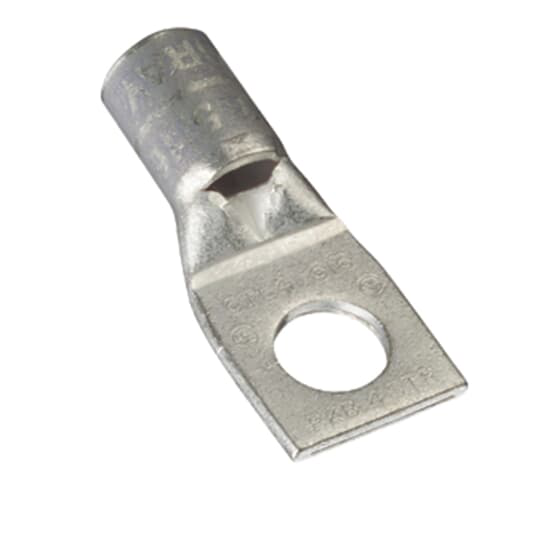

Blackburn CTL4-38 Compression Lug 1-Hole 4 AWG 3/8 Inch Stud

Product Description

The Blackburn CTL4-38 compression lug is designed for reliable electrical connections. This lug is suitable for flexible and stranded copper conductors rated at four AWG. The stud size is three-eighths of an inch, making it compatible with standard connection sizes.

• Made of high conductivity seamless copper tubing
• Tin plated for corrosion resistance
• Chamfered barrel allows for easy installation

Product Highlights

The CTL4-38 features a short barrel design and color coding for easy identification. It supports medium voltage applications up to thirty-five kilovolts when using proper insulation techniques.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: 1-Hole
• Color: Gray
• Series: CTL
• Stud Size: 3/8 in
• Conductor Size: 4 AWG
• Conductor Type: Flexible/Stranded Copper
• Overall Length: 1-13/32 in
• Voltage Rating: 35 kV
• Tongue Size: 21/32 in L x 19/32 in W x 1/16 in THK
• Tongue Type: Straight
• Barrel Size: 1/2 in L
• Barrel Type: Short/Standard
• Specifications: Tin Plated
