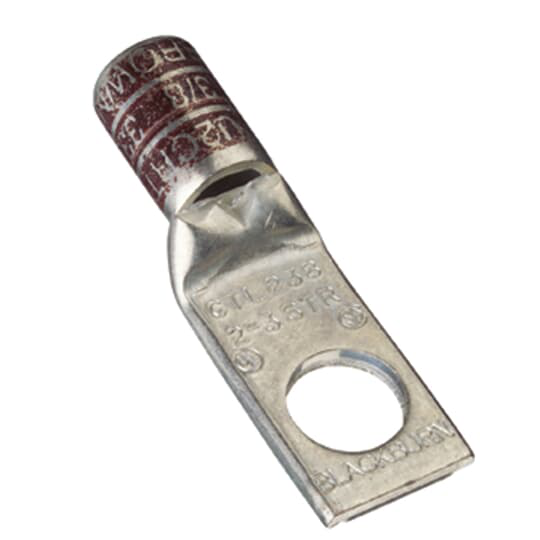

Blackburn CTL2-516 Compression Lug 2 AWG 5/16 Inch Stud

Product Description

The Blackburn CTL2-516 Compression Lug is designed for use with 2 AWG flexible or stranded copper conductors. It features a 1-hole design suitable for a 5/16 inch stud. This compression lug is made from high conductivity seamless copper tubing and is tin plated. It is designed for easy installation and can handle medium voltage applications up to 35 kV when used with proper insulation techniques.

• Compatible with 2 AWG flexible or stranded copper conductors
• Tin plated for corrosion resistance
• Easy installation with specially chamfered barrel

Product Highlights

This compression lug is part of Blackburn’s reliable product line for overhead and grounding applications. It is suitable for regular duty applications.

Product Information

Standard Information

• Type: 1-Hole
• Color: Brown

Technical Specifications

• Series: CTL
• Conductor Size: 2 AWG
• Stud Size: 5/16 in
• Voltage Rating: 35 kV
• Overall Length: 1-23/32 in
• Tongue Size: 7/8 in L x 9/16 in W x 3/32 in THK
• Barrel Size: 19/32 in L
• Barrel Type: Short/Standard
