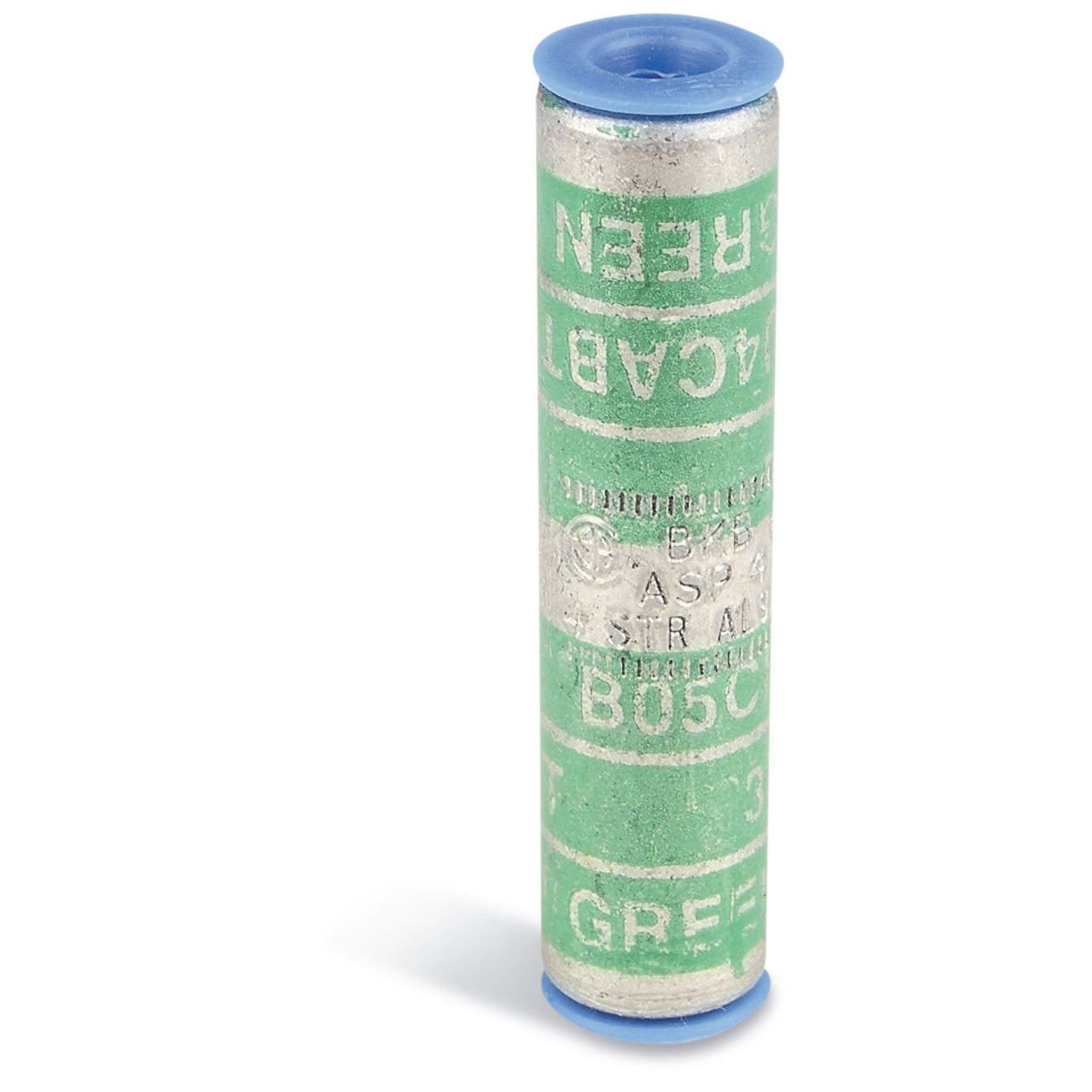

Blackburn ASP4 CONNECTOR SPLC COMPRESSION 4AWG 1-7/8IN

Product Description

The Blackburn ASP4 is a compression splice connector designed for 4 AWG stranded aluminum or copper conductors. This connector measures one and seven-eighths inches in length and is crafted from high conductivity seamless aluminum that is tin-plated to resist corrosion. It is useful in overhead, grounding, mechanical, and other construction applications.

• Made of high conductivity seamless aluminum tubing
• Chamfered barrels for easy installation
• Can handle medium voltage applications up to 35 kV

Product Highlights

Color-coded for quick and easy identification, the ASP4 ensures reliable connections for various electrical setups.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: Standard Barrel
• Color: Green
• Finish: Tin Plated
• Length: 1-7/8 inches
• Series: ASP
• Conductor Size: 4 AWG
• Conductor Type: Stranded Aluminum/Copper
• Voltage Rating: 35 kV
