Blackburn APS06 Connector Bolt Split Strd Al/Copper Al

Product Description

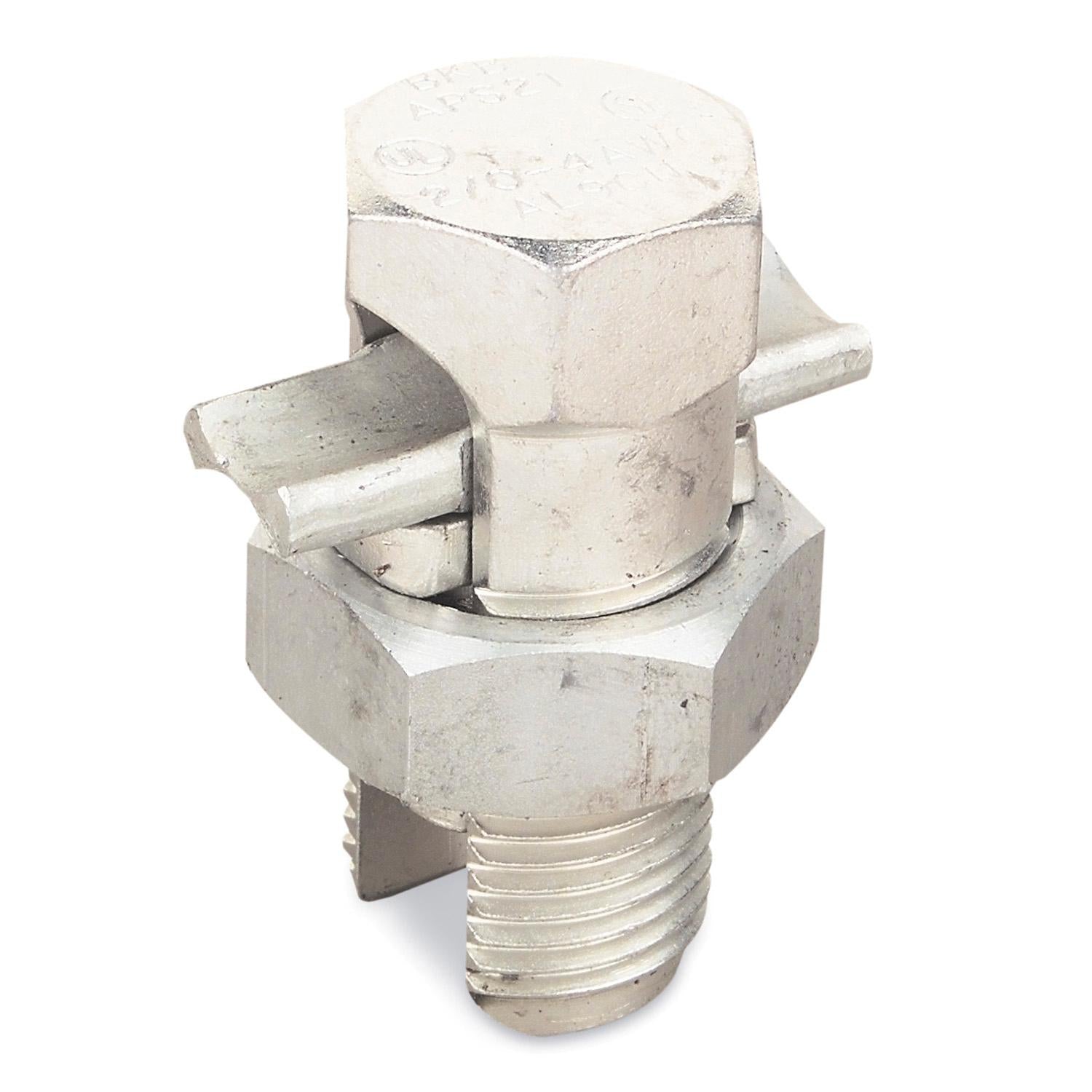

The Blackburn APS06 is a dual rated split bolt connector designed for stranded aluminum and copper conductors. This connector is suitable for conductors ranging from 10 AWG to 6 AWG. The bolt measures zero point five three one two by one point two seven inches and provides a reliable connection for electrical applications. Designed for easy installation, it works with standard wrenches.

• Installs with standard wrenches
• Aluminum dual rated for copper and aluminum conductors
• Tin plated finish for corrosion resistance

Product Highlights

The Blackburn APS06 Connector is ideal for use in residential and commercial electrical projects where strong and reliable connections are required.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB - Installation Products

Technical Specifications

• Voltage Rating: 600 VAC
• Conductor Size: 10 to 6 AWG
• Conductor Type: Stranded Aluminum/Copper
• Temperature Rating: 90 deg C
• Specifications: 0.21 in Split, 23/32 in Hex Nut, 1-1/4 in W Space Bar
• Bolt Size: 0.5312 x 1.27 in
• Finish: Electro-Plated Tin
• Package Weight: 3 lb
