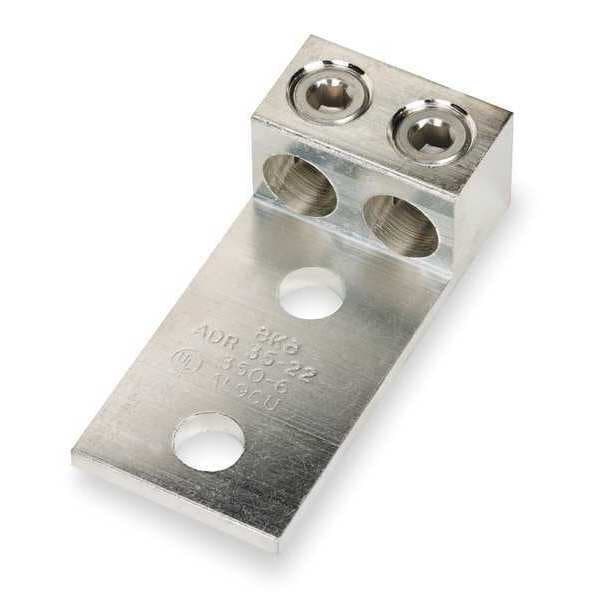

Blackburn ADR60-22D Connector Mech Al/Strd Copper 1/2in 2 Al

Product Description

The Blackburn ADR60-22D is a mechanical connector designed for use with aluminum and stranded copper conductors. This connector supports conductor sizes from 2 AWG to 600 kcmil. It features a 1/2 inch stud for easy attachment and has two bolt holes for secure mounting.

• Compatible with conductor sizes from 2 AWG to 600 kcmil
• Features two bolt holes for stability
• Easy installation with no special tools required

Product Highlights

This dual-rated mechanical connector ensures reliable electrical connections in a variety of settings.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: ADR-ALCUL Dual Rated
• Conductor Size: 2 AWG to 600 kcmil
• Stud Size: 1/2 in
• Number of Bolt Holes: 2
• Tongue Type: Straight
• Tongue Size: 1-13/16 in L x 2-3/4 in W x 3/8 in THK
• Dimensions: 5-5/16 in L x 2-3/4 in W x 1-1/2 in H
• Finish: Tin Coated
