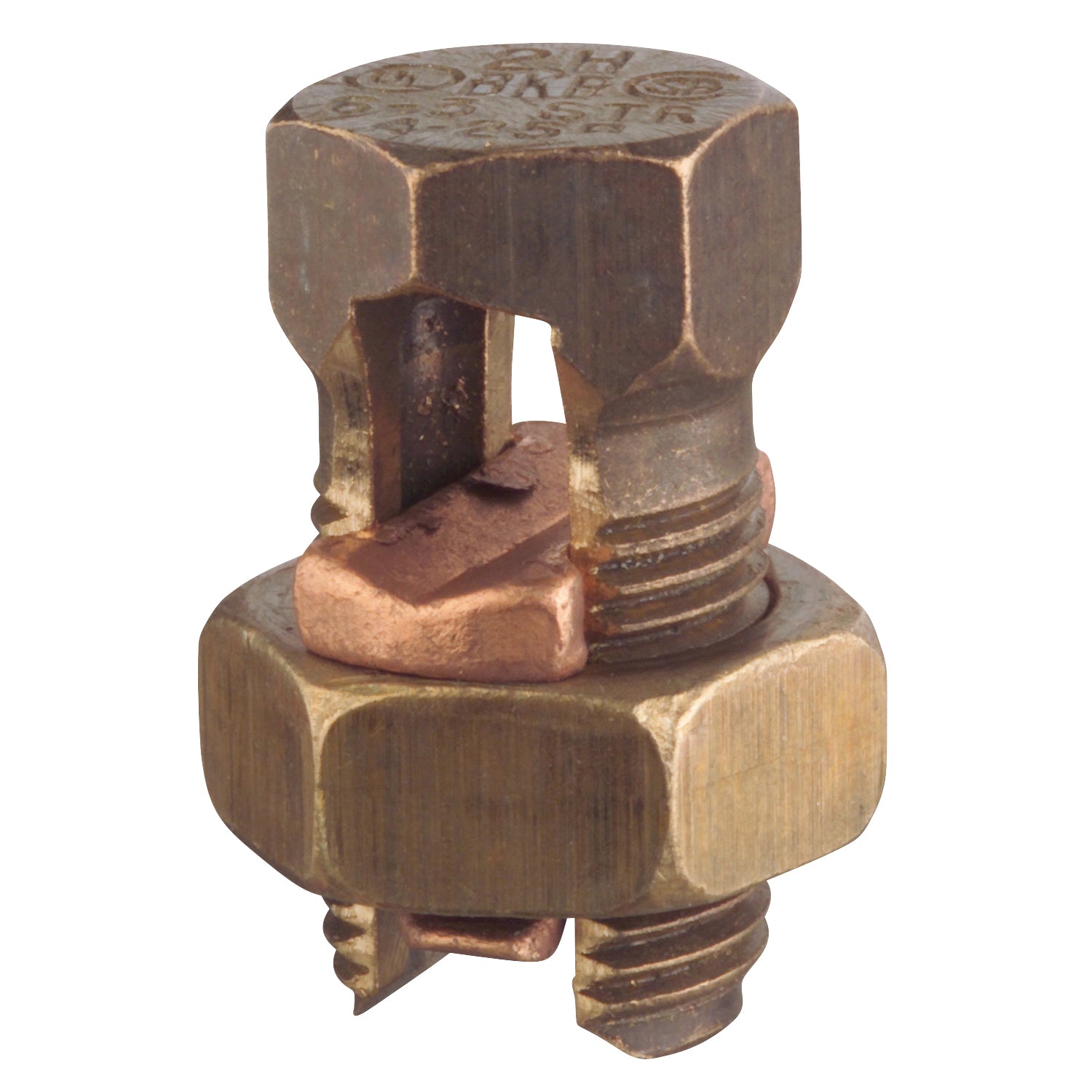

Blackburn 8H Connector Bolt Split Sol/Strd Copper

Product Description

The Blackburn 8H Connector Bolt is designed for high-strength connections in electrical applications. It is suitable for solid and stranded copper conductors ranging from ten to eight American Wire Gauge (AWG). The design incorporates a three-eighths inch by twenty-five thirty-seconds inch bolt, ensuring a firm connection.

• Compatible with ten to eight AWG solid and stranded copper conductors
• Constructed from high-strength bronze alloy for durability
• Tested for compliance with UL standards for grounding

Product Highlights

This connector is ideal for splicing, tapping, or terminating conductors in power distribution and grounding applications.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer Part No: 8H

Technical Specifications

• Type: Type H High Strength
• Color: Metallic
• Conductor Size: 10 to 8 AWG
• Material: Bronze Alloy
• Bolt Size: 3/8 x 25/32 in
• Weight: 2.56 lb
• Specifications: 0.146 in Split, 1/2 in Hex Nut
• Applications: Splicing, tapping, or terminating conductors
