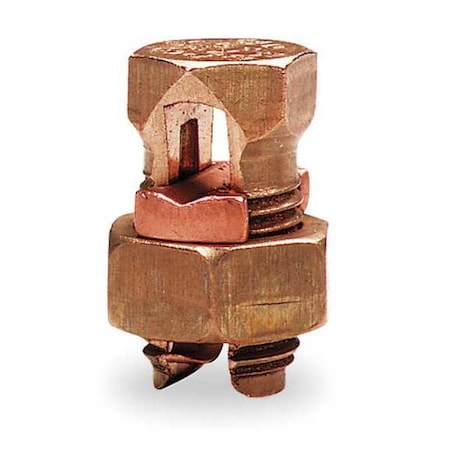

Blackburn 500M Split-Bolt Connector 400 to 500 kcmil

Product Description

The Blackburn 500M is a split-bolt connector designed for 400 to 500 kcmil stranded copper conductors. It features a high-strength bronze alloy construction for durability and corrosion resistance. This connector is ideal for splicing, tapping, or terminating conductors in power and grounding electrical applications.

• Suitable for 400 to 500 kcmil stranded copper conductors
• Constructed from high-strength corrosion-resistant bronze alloy
• Hex head design for easy installation and secure connections

Product Highlights

Utilize this connector for reliable electrical connections in various applications.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 783786855261

Technical Specifications

• Type: Type H High Strength
• Conductor Type: Stranded Copper
• Conductor Size: 400 to 500 kcmil
• Split Size: 0.842 in
• Hex Nut Size: 1.875 in
• Torque: 675 in-lb
• Overall Length: 3.03 in
• Maximum Voltage: 600 V
