Blackburn 2H3 2Sol 3W Cu Split Bolt

Product Description

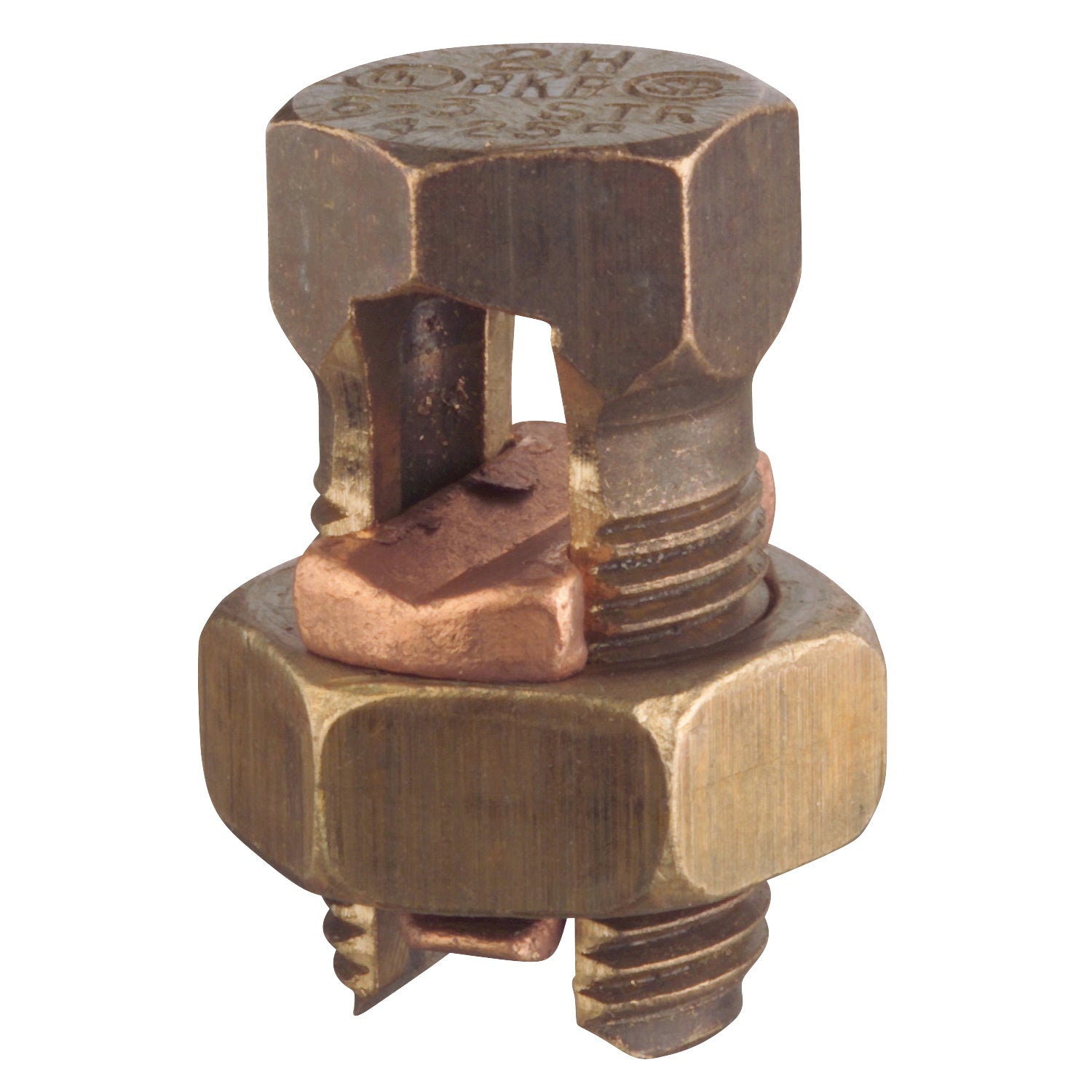

The BLACKBURN 2H3 Split Bolt Connector is designed for hex head installation and is made of copper. It accommodates a minimum run conductor size of 6 AWG solid and a maximum of 2 AWG solid. The minimum tap conductor size is 14 AWG solid, with a maximum of 2 AWG solid. It is UL and CSA approved.

• Split Bolt Connector
• Hex Head Split Bolt Installation
• Copper Conductor Material
• UL, CSA Approval

Product Highlights

High-strength, corrosion-resistant bronze alloy bolt and nut with a copper pressure bar. Ideal for splicing, tapping, or terminating conductors.

Product Information

Standard Information

• Brand: BLACKBURN
• Manufacturer Part Number: 2H3

Technical Specifications

• Type: Split Bolt
• Installation: Hex Head Split Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 6 AWG Solid
• Maximum Run Conductor Size: 2 AWG Solid
• Minimum Tap Conductor Size: 14 AWG Solid
• Maximum Tap Conductor Size: 2 AWG Solid
• Material: Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Pressure Bar
• Approval: UL, CSA
• Application: Splicing; tapping or terminating conductors in power and grounding electrical co
• Manufacturer: BLACKBURN
• Special Features: Bolt and nut of high-strength corrosion-resistant bronze alloy. Copper pressure
• Category: Mechanical connectors
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Suitable for: Round conductor
• Conductor Size: 6-2 AWG
• Brand: ABB
• Sub Brand: Blackburn®
• Product UPC: 78378620011
