BLACKBURN Blackburn 1H3 Split Bolt Connector 2 Str to 6 Sol
BLACKBURN Blackburn 1H3 Split Bolt Connector 2 Str to 6 Sol

Blackburn 1H3 Split Bolt Connector 2 Str to 6 Sol

Brand: BLACKBURN
SKU: 1H3
Availability: Out Of Stock
$2,091.10
$2,091.10
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

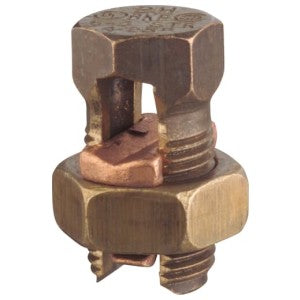

The BLACKBURN 1H3 is a high-strength split-bolt connector with a copper pressure bar and a hex design bolt and nut. It is corrosion-resistant and features a high conductivity copper pressure bar that detaches dissimilar metals, preventing galvanic corrosion. It is suitable for splicing, tapping, or terminating conductors in power and grounding electrical connections.

  • High strength
  • Copper pressure bar
  • Hex design bolt and nut

Product Highlights

This split-bolt connector is made of bronze alloy and is suitable for use on copper conductors within a conductor range of 2 Str to 6 Sol.

Product Information

Standard Information

  • Brand: BLACKBURN
  • Manufacturer Part Number: 1H3
  • Country of Origin: Mexico
Technical Specifications
ECCN
EAR99
Country of Origin
Mexico
UNSPSC
39121408
Tap Conductor Size
2 Str to 6 Sol
Type
Split Bolt
Installation
Hex Head Split Bolt
Conductor Material
Copper
Minimum Run Conductor Size
6 AWG Solid, 2 AWG Stranded
Maximum Run Conductor Size
6 AWG Solid, 2 AWG Stranded
Minimum Tap Conductor Size
14 AWG Solid, 2 AWG Stranded
Maximum Tap Conductor Size
6 AWG Solid, 2 AWG Stranded
Material
Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Pressure Bar
Approval
UL, CSA
Bolt Size
11/16 x 1-5/8 in
Conductor Size
6 to 2 AWG
Conductor Type
Solid/Stranded Copper
ETIM
EC000491
Specifications
0.33 in Split, 7/8 in Hex Nut
Standard
UL E9809
Application
Splicing, tapping or terminating conductors in power and grounding electrical connection
Brand
ABB
Sub Brand
Blackburn®
12-Digit UPC
783786200139
Product UPC
78378620013
