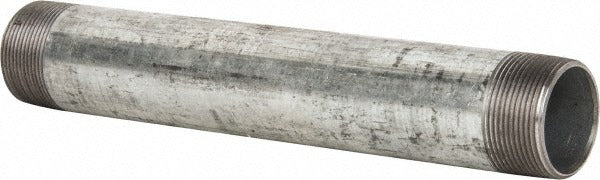

Bk Mueller 567-110HC Galvanized Pipe Nipple 1-1/2in 11in Sch 40

Product Description

The BK MUELLER 567-110HC is a galvanized steel pipe nipple designed for threaded pipe assemblies in plumbing, gas, and mechanical systems. Manufactured to Schedule 40 wall thickness, this nipple measures 1-1/2 inches in diameter and 11 inches in length, with NPT threads on both ends for direct connection to fittings, valves, or other threaded pipe components. The galvanized zinc coating provides corrosion resistance in water supply, drain, and general-purpose piping applications. Licensed plumbers and pipefitters install this type of fitting during new construction and retrofit work on low- and medium-pressure systems.

This pipe nipple is suited for residential and light commercial plumbing, HVAC condensate and hydronic piping, gas distribution lines, and industrial process piping where Schedule 40 threaded steel is specified. The 11-inch length makes it a close-to-standard hex nipple alternative when additional clearance or offset is needed between fittings. It is compatible with standard 1-1/2-inch NPT threaded fittings and valves.

Key Features

• Schedule 40 wall thickness for standard-pressure plumbing and mechanical applications
• 1-1/2-inch NPT threads on both ends for direct connection to standard fittings
• Galvanized zinc coating for corrosion resistance in wet and outdoor environments
• 11-inch length provides extended reach between threaded connection points
• Steel construction rated for use in water, gas, and general-purpose piping systems

Compatibility

Designed as a standard OEM-style replacement or new-installation component compatible with 1-1/2-inch NPT threaded fittings, couplings, valves, and pipe flanges in Schedule 40 steel piping systems.

Installation Notes

Installation is performed by licensed plumbers or pipefitters in accordance with applicable IPC or IFGC code requirements for the intended service. Apply an approved thread sealant or PTFE tape to the male NPT threads before assembly. Hand-tighten first, then use a pipe wrench to achieve a proper thread engagement without over-torquing. Shut off and depressurize the system completely before removing or installing any threaded pipe component.
