Bk Mueller 511-354HP Malleable Iron Reducing Coupling

Product Description

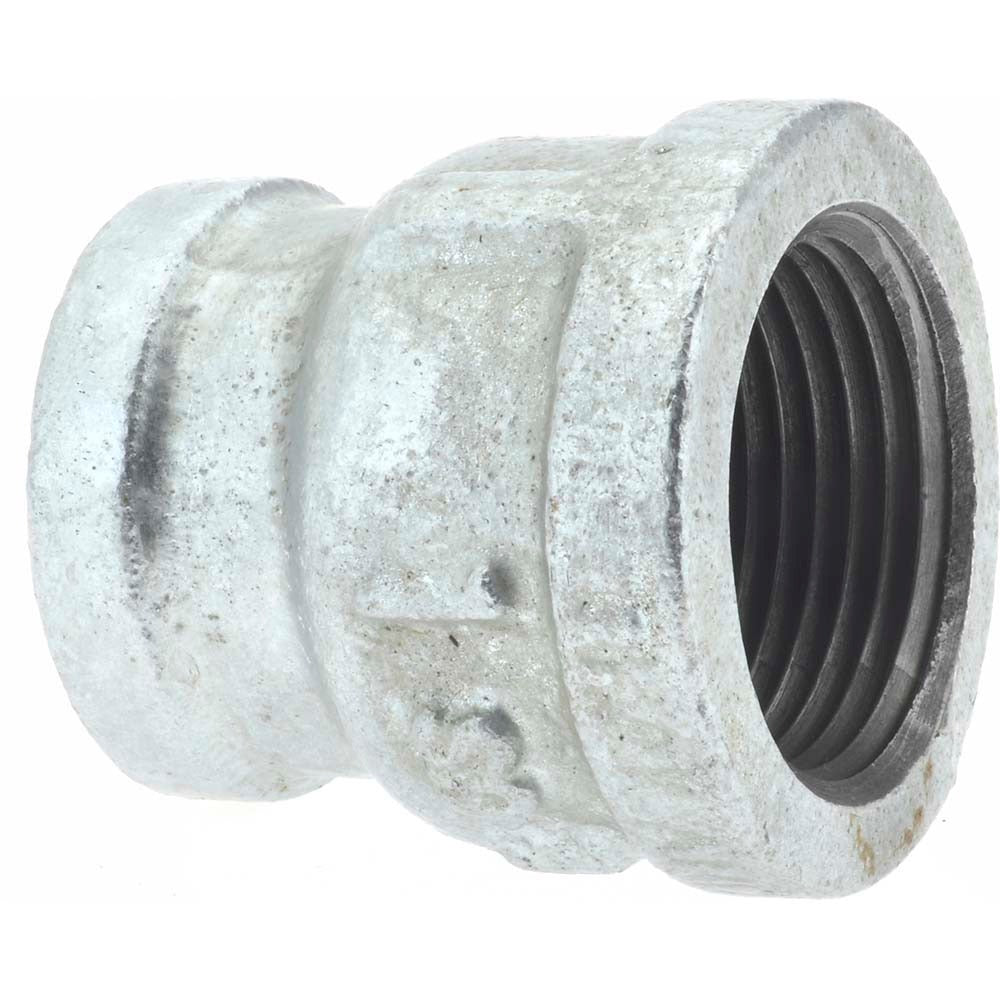

The BK MUELLER 511-354HP is a malleable iron reducing coupling designed to connect pipes of two different diameters within a threaded piping system. It transitions from a 1-inch pipe to a 3/4-inch pipe and is rated for 300 psi in liquid and gas service and 150 psi in steam service. The Class 150 fitting carries a galvanized finish coating that provides corrosion resistance in both indoor and outdoor applications. Plumbers and pipefitters install this type of coupling during new construction and retrofit work where pipe size reduction is needed along a run.

This reducing coupling is suited for residential and light commercial plumbing, gas distribution, and steam piping systems where a threaded connection is specified. The 1-inch-by-3/4-inch size is a common reduction used in supply lines, branch takeoffs, and utility piping runs. It is appropriate for use with both Schedule 40 and Schedule 80 threaded pipe where the pressure ratings and material compatibility are met.

Key Features

• Malleable iron construction provides strength and impact resistance in threaded piping applications
• Galvanized finish coating improves corrosion resistance for long service life
• 300 psi liquid and gas pressure rating supports a wide range of utility piping uses
• 150 psi steam pressure rating meets Class 150 steam system requirements
• Threaded end connections on both ends conform to standard NPT fitting practices
• Reduces from 1 inch to 3/4 inch for straightforward in-line pipe size transitions

Compatibility

Designed as an OEM-style replacement and standard fitting for threaded malleable iron piping systems rated at Class 150, suitable for liquid, gas, and low-pressure steam service where NPT threaded connections are specified.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing and mechanical codes, including IPC and IFGC requirements where relevant. Shut off and depressurize the piping system completely before removing any existing fittings or making new connections. Apply an appropriate thread sealant or PTFE tape to all male NPT threads before assembly. Do not overtighten threaded connections, as malleable iron fittings can crack under excessive torque.
