Bk 510-305BG 1 in 90 Degree Street Galvanized Elbow

Product Description

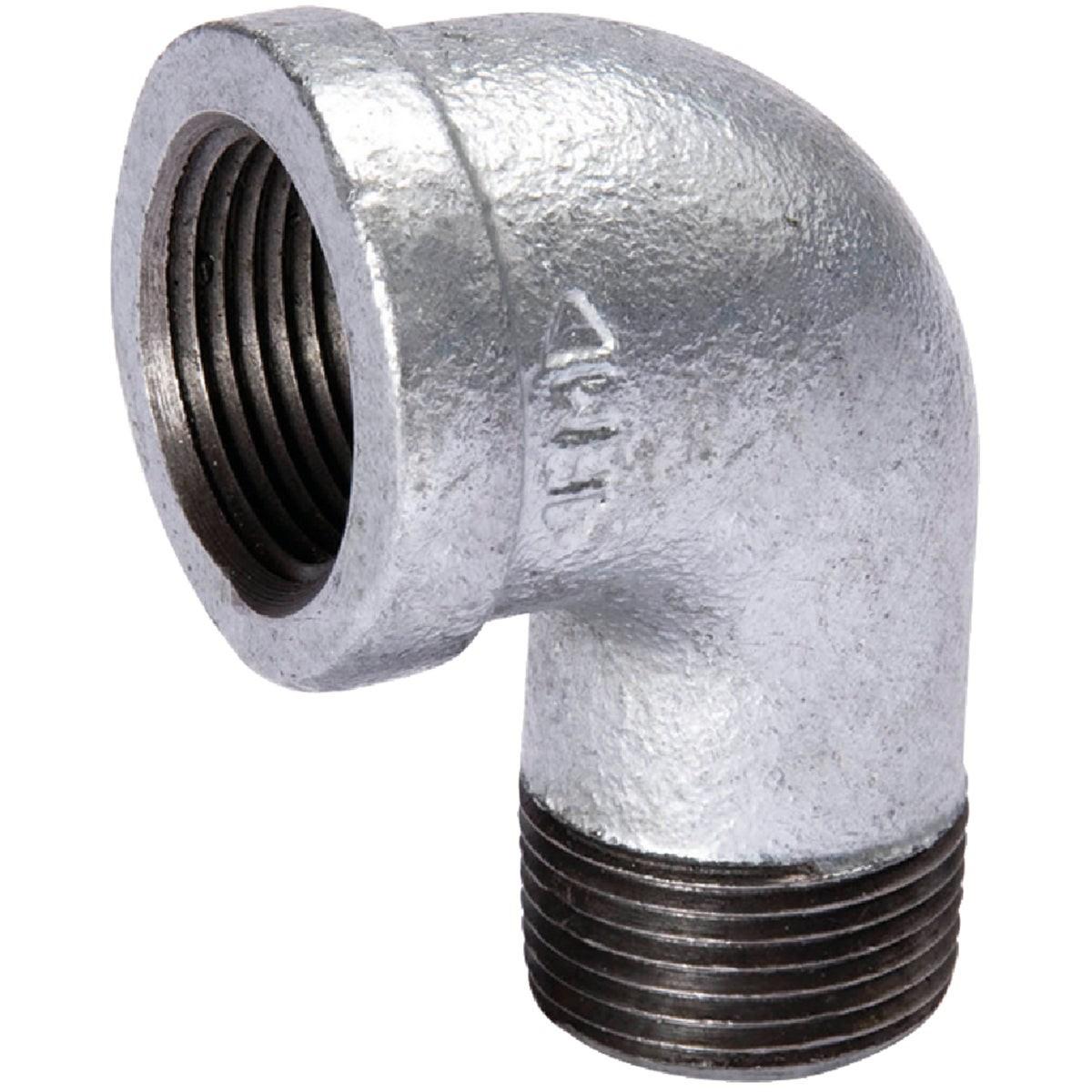

The BK 510-305BG is a 1-inch 90-degree street galvanized malleable iron elbow fitting, also known as a quarter bend. It is used to change pipe direction in threaded piping systems and is built from galvanized malleable iron meeting ANSI/ASTM A-197 material standards. Each fitting is individually flag tagged and 100% inspected and quality tested before leaving the factory. The Mueller logo is cast directly into the body of each fitting. At 0.604 pounds, this elbow is a standard single-unit fitting suited for plumbing and mechanical piping installations handled by licensed plumbers and pipefitters.

This street elbow is designed for use in residential and light commercial threaded piping systems where a 90-degree directional change is required. A street elbow features one male and one female threaded end, allowing it to connect directly to another fitting without a nipple in between. It is commonly installed in water supply, gas distribution, and general mechanical piping applications where galvanized iron is the specified material.

Key Features

• Galvanized malleable iron construction per ANSI/ASTM A-197 for corrosion resistance in threaded piping systems
• 90-degree street configuration with one male and one female threaded end
• Threads conform to ANSI B1.20.1 for reliable, leak-resistant connections
• Dimensions per ANSI/ASME B16.3, B16.14, and B16.39 standards
• Each fitting individually flag tagged and 100% inspected and quality tested
• Mueller logo cast into body for product identification

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch threaded galvanized malleable iron piping systems conforming to ANSI/ASME dimensional standards.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC) or International Fuel Gas Code (IFGC) where relevant. Shut off and depressurize the piping system before removing or installing any threaded fittings. Apply an approved thread sealant or PTFE tape to male threads before assembly. Do not over-tighten threaded connections, as malleable iron fittings can crack if excessive force is applied.

Technical Specifications

• Material: Galvanized malleable iron
• Material Standard: ANSI/ASTM A-197
• Pipe Size: 1 inch
• Angle: 90 degrees
• Configuration: Street (one male end, one female end)
• Thread Standard: ANSI B1.20.1
• Dimensional Standards: ANSI/ASME B16.3, B16.14, B16.39
• Weight: 0.604 pounds
• Sold As: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 510-305BG
