Bk 496-019 Stainless Steel Faucet Connector 72 Inch

Product Description

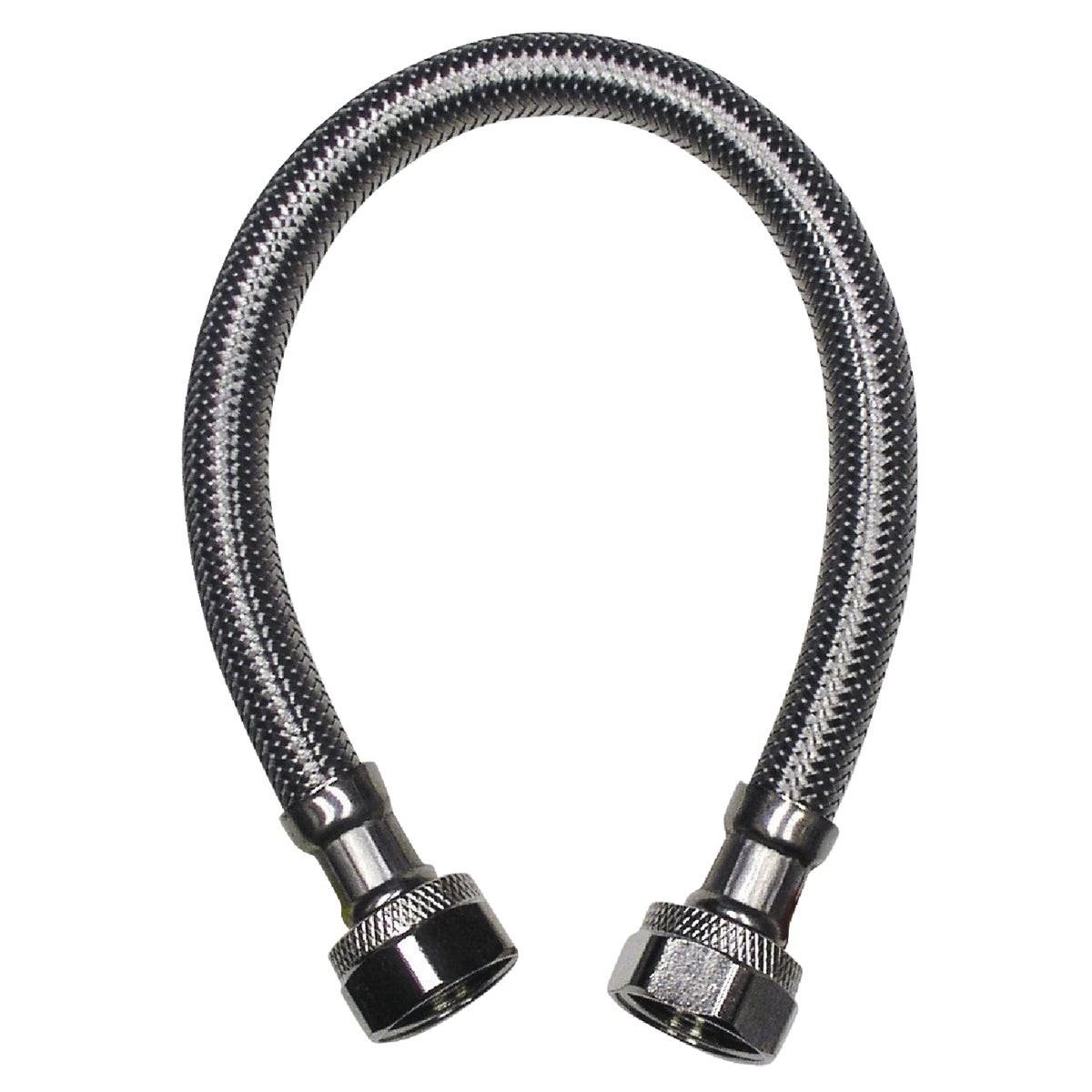

The BK 496-019 is a 72-inch braided stainless steel faucet connector designed to deliver a reliable water supply connection between shutoff valves and plumbing fixtures. The core is virgin PVC reinforced with polyester yarn braiding, then over-braided with Type 304 stainless steel for burst resistance and long-term durability. Chrome-plated brass hex nuts and pre-installed washers create a dependable hand-tight seal at both ends. The connector is rated to a maximum working pressure of 125 psi and a maximum temperature of 180 degrees F. Licensed plumbers and qualified tradespeople install this connector in residential, commercial, and industrial settings.

This connector fits standard 1/2-inch female iron pipe (FIP) connections on both ends, making it suitable for water supply runs to faucets, toilets, ice makers, and similar fixtures. At 72 inches in length, it accommodates installations where the shutoff valve and fixture inlet are separated by a greater-than-typical distance or where routing around cabinetry requires additional slack. IAPMO listing confirms the connector meets established plumbing code requirements for water supply applications.

Key Features

• Type 304 stainless steel over-braid provides strength and corrosion resistance
• Virgin PVC core with polyester yarn reinforcement resists kinking
• Chrome-plated brass hex nuts with washers for a hand-tight, leak-resistant seal
• Rated to 125 psi maximum working pressure
• Rated to 180 degrees F maximum operating temperature
• IAPMO listed for residential, commercial, and industrial water supply use

Compatibility

Designed for water supply connections to plumbing fixtures using 1/2-inch female iron pipe fittings on both ends. Approved for residential, commercial, and industrial water supply applications.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson in accordance with applicable local plumbing codes. Shut off the water supply and relieve line pressure before disconnecting or installing any supply connector. Hand-tighten the brass nuts firmly onto the shutoff valve and fixture inlet, then snug with a wrench — avoid overtightening, which can crack the nut or damage the seat washer. Inspect for leaks after restoring water pressure.

Technical Specifications

• Connection Size: 1/2 inch x 1/2 inch
• Connection Type: Female Iron Pipe (FIP) x Female Iron Pipe (FIP)
• Length: 72 inches
• Maximum Pressure: 125 psi
• Maximum Temperature: 180 degrees F
• Core Material: Virgin PVC with polyester yarn braiding
• Outer Braid Material: Type 304 stainless steel
• Nut Material: Chrome-plated brass
• Weight: 1.084 pounds
• Certification: IAPMO listed

Standard Information

• Brand: BK
• Manufacturer Part Number: 496-019
