Bk 158-006 Split Plate 1.25 in Ips Chrome Steel

Product Description

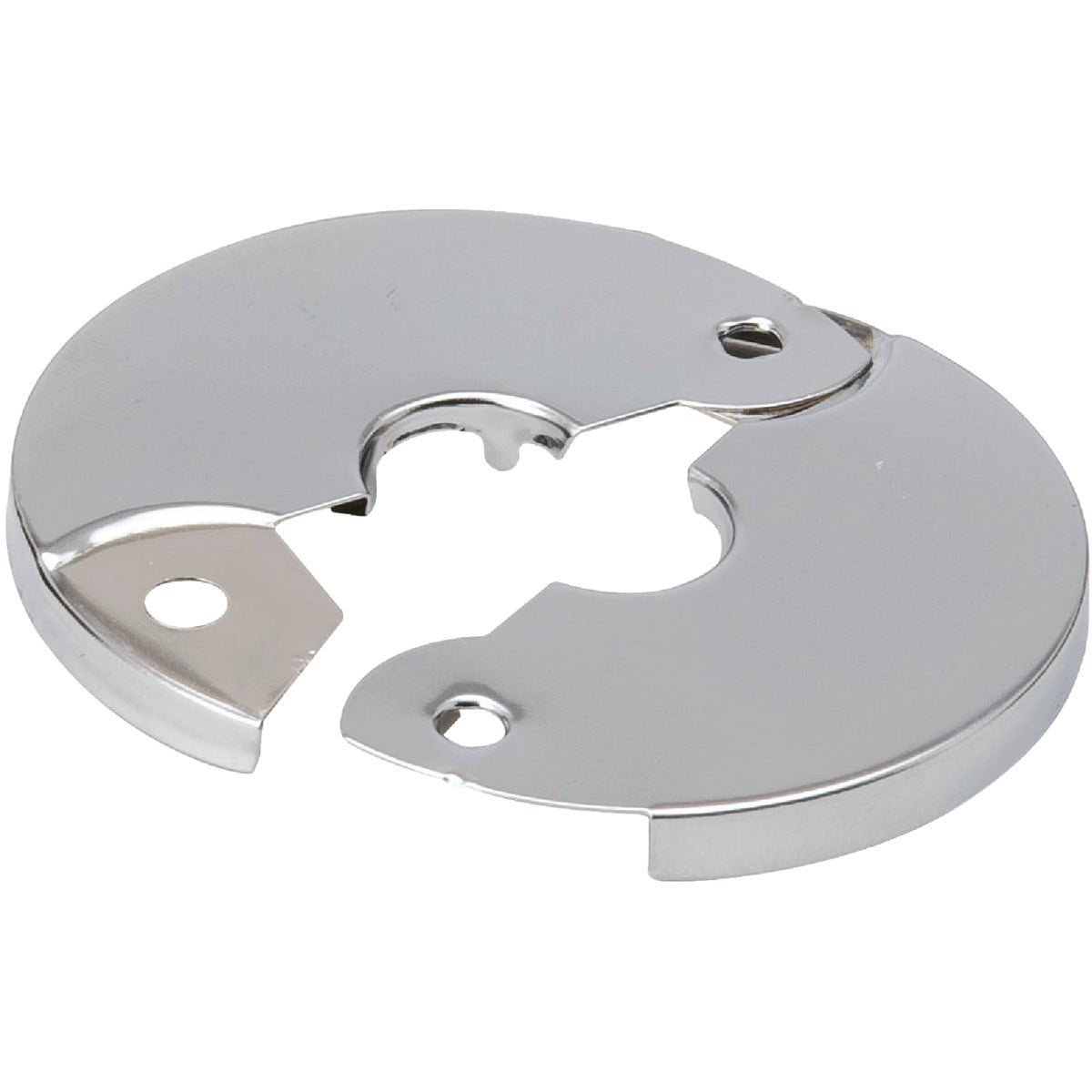

The BK 158-006 is a chrome-plated steel split plate designed for use with 1-1/4 inch IPS pipe, which has an outer diameter of 1.660 inches. Split plates, also called escutcheons or cover flanges, mount around exposed pipe penetrations at walls, floors, or ceilings to conceal rough openings and provide a finished appearance. The two-piece split design allows installation without removing the pipe. This part is typically installed by plumbers or finish tradespeople during rough-in completion or remodel work where a clean pipe exit point is required.

This split plate is suited for residential and light commercial plumbing applications where 1-1/4 inch IPS pipe passes through a finished surface. Common install scenarios include lavatory drain lines, supply risers, and similar exposed pipe locations at walls or floor penetrations. The chrome finish makes it appropriate for visible trim work in kitchens, bathrooms, and utility spaces where a polished look is expected.

Key Features

• Split design allows installation around existing pipe without pipe removal
• Chrome-plated steel construction for corrosion resistance and finished appearance
• Sized for 1-1/4 inch IPS pipe with 1.660 inch outer diameter
• Suitable for wall, floor, or ceiling pipe penetration trim applications

Compatibility

Designed as an OEM-style trim fitting for 1-1/4 inch IPS pipe penetrations in residential and light commercial plumbing installations.

Installation Notes

Installation does not require special tools — the split plate separates to fit around the pipe and fastens at the penetration surface. Shut off water supply before performing any related pipe work in the area. Ensure the wall or floor surface is clean and dry before seating the plate for best contact. Follow local plumbing codes for finish trim requirements.

Technical Specifications

• Pipe Size: 1-1/4 inches IPS
• Outside Diameter (IPS): 1.660 inches
• Material: Chrome-plated steel
• Weight: 0.062 pounds
• Unit of Measure: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: 158-006
