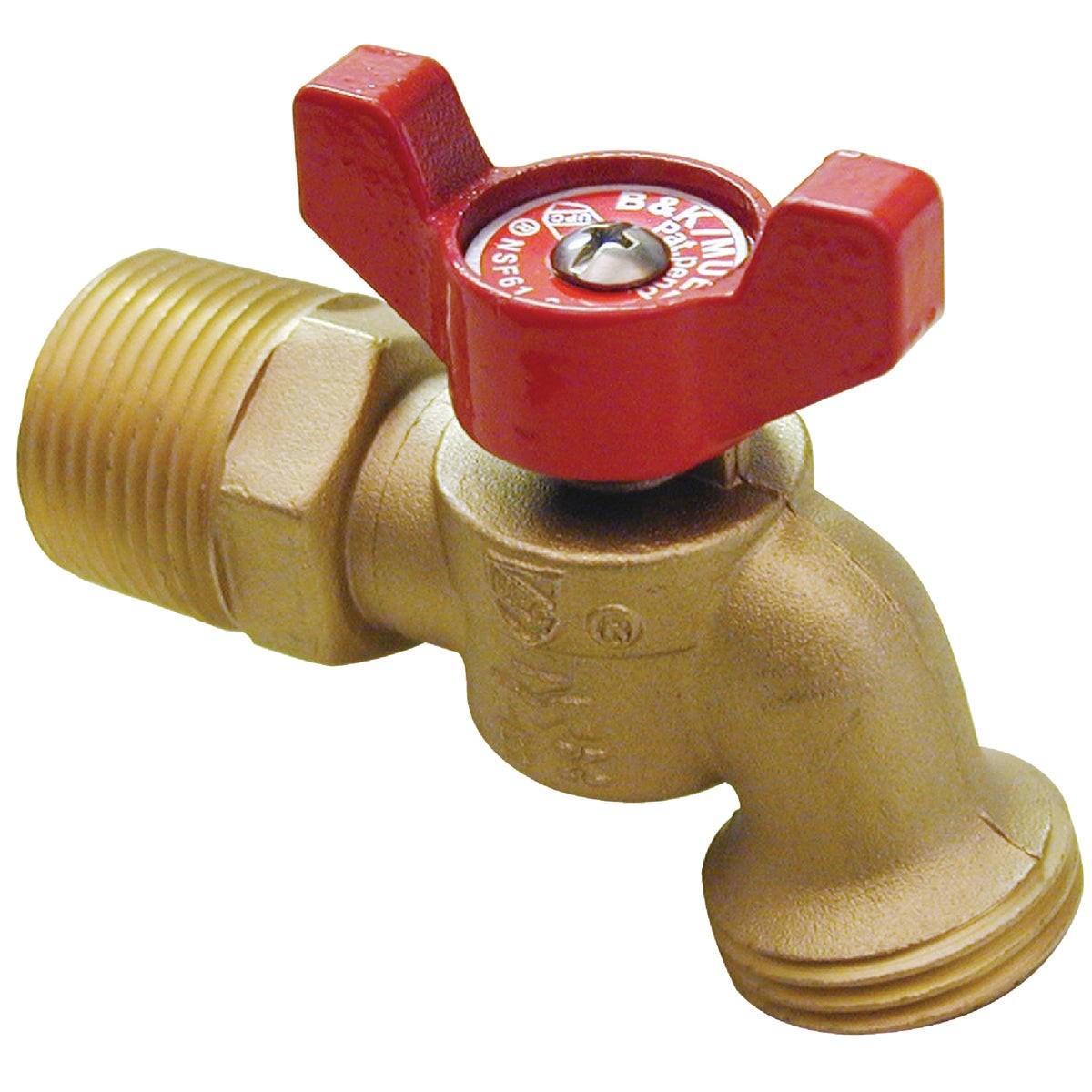

Bk 103-054HN Brass Hose Bibb 3/4 in Mip X Male Hose Thread

Product Description

The BK 103-054HN is a quarter-turn brass hose bibb from the ProLine Quartermaster Series, designed for residential and light commercial plumbing applications. It features a 3/4 inch MIP inlet and a 3/4 inch male hose thread outlet. The valve uses a chrome-plated brass ball with PTFE seats for reliable shutoff and long service life. Rated at a maximum 125 psi working pressure, this hose bibb meets ANSI/NSF 61.9 for drinking water system components and complies with ASME A112.18.1. It is UPC approved and ready for direct installation by licensed plumbers.

This hose bibb is suited for outdoor spigot connections, irrigation supply lines, and utility water outlets in residential and light commercial settings. The quarter-turn operation provides fast, positive shutoff. Pipe thread ends comply with ANSI B1.20.1, hose ends comply with ANSI B1.20.7, and solder ends comply with ANSI B16.18, making this fitting compatible with standard threaded and soldered installations. Install at exterior walls, utility rooms, or mechanical spaces where a garden hose or equipment supply connection is required.

Key Features

• Quarter-turn operation for fast, positive shutoff
• Chrome-plated brass ball with PTFE seats for durable, leak-resistant performance
• Rated to 125 psi maximum working pressure
• Meets ANSI/NSF 61.9 and ASME A112.18.1 standards
• UPC approved and compliant with ANSI B1.20.1, B1.20.7, and B16.18
• 3/4 inch MIP inlet x 3/4 inch male hose thread outlet configuration

Compatibility

Designed as an OEM-style replacement or new-installation hose bibb for standard 3/4 inch threaded plumbing systems in residential and light commercial applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the water supply and relieve system pressure before beginning work. Apply thread sealant tape or pipe compound to MIP threads before making connections. Do not overtighten threaded fittings, as brass threads can be damaged by excessive force.

Technical Specifications

• Inlet Connection: 3/4 inch MIP
• Outlet Connection: 3/4 inch Male Hose Thread
• Maximum Working Pressure: 125 psi
• Ball Material: Chrome-plated brass
• Seat Material: PTFE
• Operation Type: Quarter-turn
• Weight: 0.394 pounds
• Certifications: ANSI/NSF 61.9, ASME A112.18.1, UPC, ANSI B1.20.1, ANSI B1.20.7, ANSI B16.18
• Country of Origin: Import

Standard Information

• Brand: BK
• Manufacturer Part Number: 103-054HN
