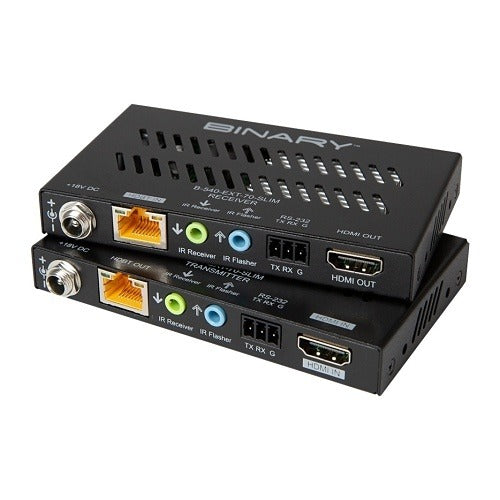

Binary B-540-EXT-70-SLIM Hdbaset Hdmi Extender

Product Description

The BINARY B-540-EXT-70-SLIM is an HDBaseT HDMI extender designed to transmit high-definition video, IR control signals, and RS-232 serial data over a single structured cable run. The slim form factor makes it well suited for installations where mounting depth is limited, such as behind flat-panel displays or inside shallow wall enclosures. Licensed AV integrators and low-voltage technicians install this unit in commercial and residential AV distribution systems where long cable runs between source equipment and displays are required. It is sold as a single unit.

This extender is built for commercial AV applications including conference rooms, digital signage installations, hospitality systems, and multi-room video distribution. The integrated IR passthrough allows remote control commands to travel back to source equipment at the head end, and the RS-232 port enables serial control of connected displays or sources. It is part of the BINARY 540 series, which targets professional AV installations requiring reliable signal extension over Cat-rated structured cabling.

Key Features

• HDBaseT technology extends HDMI signals over a single Cat cable run
• Integrated IR channel enables bidirectional remote control passthrough
• RS-232 serial port supports display or source device control
• Slim profile accommodates shallow mounting locations behind panels or in enclosures
• Single-unit quantity suitable for individual transmitter or receiver deployment

Compatibility

Designed for use in professional HDBaseT AV distribution systems as part of a transmitter and receiver pair configuration. Specific compatible transmitters, receivers, or switchers were not provided in the product data — consult BINARY documentation for verified pairing within the 540 series.

Installation Notes

Installation should be performed by a licensed low-voltage AV technician familiar with HDBaseT signal requirements and structured cabling standards. Power down all connected source and display equipment before making or breaking connections. Use properly terminated Cat cable of the grade specified in BINARY system documentation to ensure signal integrity at full extension distance. Verify IR emitter and RS-232 wiring at both ends before commissioning the system.
