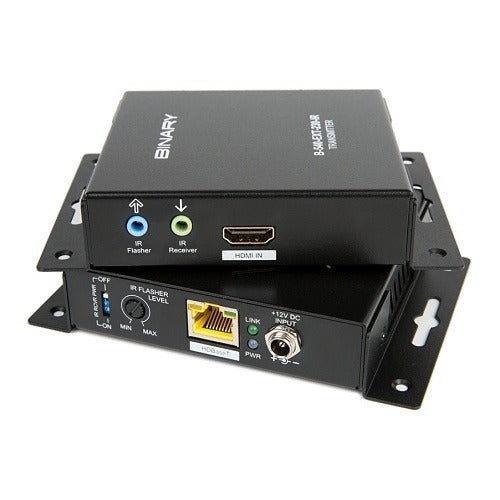

Binary B-540-EXT-230-IR Hd Hdbaset Extender Ir

Product Description

The BINARY B-540-EXT-230-IR is an HD HDBaseT extender with integrated infrared (IR) pass-through, designed for extending high-definition video and control signals over a single twisted-pair cable. This unit transmits HD video alongside IR control commands, allowing remote management of source equipment from the display location. It is suited for commercial AV installations where long cable runs are required and maintaining IR control across the signal path is critical. Licensed AV integrators and low-voltage technicians are the primary installers of this equipment.

The B-540-EXT-230-IR is intended for commercial audio and video applications where HD signal extension is needed across longer distances than HDMI cables can reliably support. Typical install scenarios include conference rooms, digital signage installations, classrooms, and other commercial environments where the source and display are separated by significant distance. The integrated IR channel allows technicians to route control signals alongside the video feed without running separate IR wiring.

Key Features

• HDBaseT technology extends HD video over a single twisted-pair cable
• Integrated IR pass-through for remote control of source devices from the display end
• Designed for commercial AV environments requiring long-distance signal distribution
• Single-unit solution consolidating video and control signal extension
• Sold as an individual unit (each)

Compatibility

Designed as an OEM-style replacement or integration component for commercial HDBaseT AV distribution systems requiring HD video and IR signal extension over twisted-pair cabling.

Installation Notes

Installation should be performed by a licensed low-voltage technician or AV integrator familiar with HDBaseT signal distribution and IR control wiring. Power down all connected source and display equipment before connecting or disconnecting the extender. Follow TIA-568 cabling standards when running the twisted-pair cable between transmitter and receiver units. Verify IR emitter and receiver placement at both ends to confirm control signal continuity before completing the installation.
