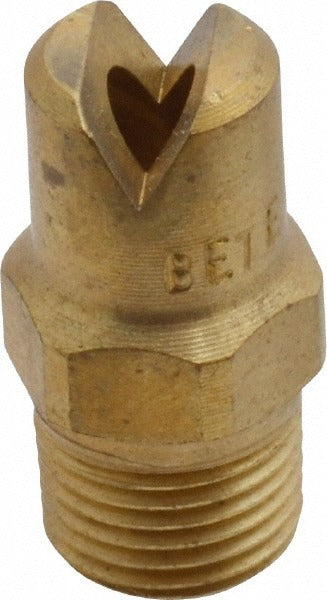

Bete Fog Nozzle 1/8NF4065@4 Brass Fan Spray Nozzle

Product Description

The BETE FOG NOZZLE 1/8NF4065@4 is a brass standard fan spray nozzle designed for industrial and commercial fluid distribution applications. It produces a flat fan spray pattern at a 65-degree spray angle, making it well suited for coating, cooling, rinsing, and dust suppression systems. The nozzle connects via a 1/8-inch male pipe thread and delivers 6.32 gallons per minute at 100 psi. The orifice diameter measures 0.156 inches. Plumbing and process-system technicians install this fitting where consistent, wide-angle spray coverage is required in pressurized liquid distribution lines.

This nozzle is used in both light industrial and commercial process piping systems. Typical applications include spray wash systems, evaporative cooling arrays, agricultural spray rigs, and chemical treatment lines where a controlled flat-fan pattern is needed. The compact 1/8-inch male pipe connection allows integration into standard threaded pipe assemblies without adapters in most configurations. Its brass construction holds up well in moderate-temperature water and chemical service environments.

Key Features

• 65-degree flat fan spray angle for wide, even coverage
• Brass construction resists corrosion in water and mild chemical service
• 1/8-inch male pipe thread for direct integration into standard threaded systems
• 0.156-inch orifice diameter provides consistent flow characteristics
• Rated at 6.32 GPM at 100 psi with verified flow data at 20 and 40 psi as well

Compatibility

Designed as a standard replacement or new-installation fan spray nozzle for 1/8-inch NPT male pipe thread connections in pressurized fluid distribution systems.

Installation Notes

Installation is performed by qualified plumbers or process-system technicians. Depressurize and drain the line before removing or installing any nozzle fitting. Apply thread sealant or PTFE tape to the male threads per IPC guidelines to prevent leaks. Do not over-tighten brass fittings, as the material is softer than steel and the threads can be damaged.
