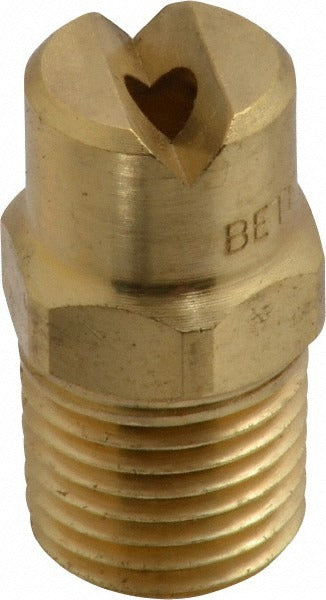

Bete Fog Nozzle 1/4NF4065@4 Brass Fan Nozzle 65 Degree

Product Description

The BETE FOG NOZZLE 1/4NF4065@4 is a brass standard fan nozzle designed to produce a flat, wide-angle spray pattern for industrial and commercial liquid distribution applications. Built with a 1/4-inch NPT male connection and a 0.156-inch orifice diameter, this nozzle delivers a 65-degree spray angle with a flow rate of 6.32 gallons per minute at 100 psi. The brass construction provides solid corrosion resistance for a wide range of liquid media. Installation and servicing are handled by plumbing, HVAC, and industrial process technicians who require consistent, repeatable spray performance.

This nozzle is suited for use in spray systems where a controlled fan pattern is required, including cooling towers, dust suppression, chemical application, process rinsing, and similar industrial or commercial installations. The 1/4-inch NPT male thread fits standard female pipe fittings commonly found in existing process piping and manifold assemblies. Flow performance scales with pressure, making it adaptable across a range of system operating conditions.

Key Features

• 65-degree flat fan spray angle for broad, controlled coverage
• 0.156-inch orifice diameter for precise flow metering
• 6.32 GPM at 100 psi; 4.00 GPM at 40 psi; 2.83 GPM at 20 psi
• 1/4-inch NPT male connection for standard pipe fitting compatibility
• Brass construction for durability and corrosion resistance

Compatibility

Designed as an OEM-style replacement or direct-fit spray nozzle for 1/4-inch NPT female threaded ports in standard fan spray manifold and process piping systems.

Installation Notes

Shut down system pressure and relieve line pressure before removing or installing any spray nozzle. Use appropriate pipe thread sealant or PTFE tape on NPT threads per applicable plumbing codes. Hand-tighten first, then use a wrench for final seating - avoid over-tightening brass fittings. Verify operating pressure falls within the system design range before returning the line to service.
