Best 711061682 Full Mortise Commercial Steel Hinge 4.5 in

Product Description

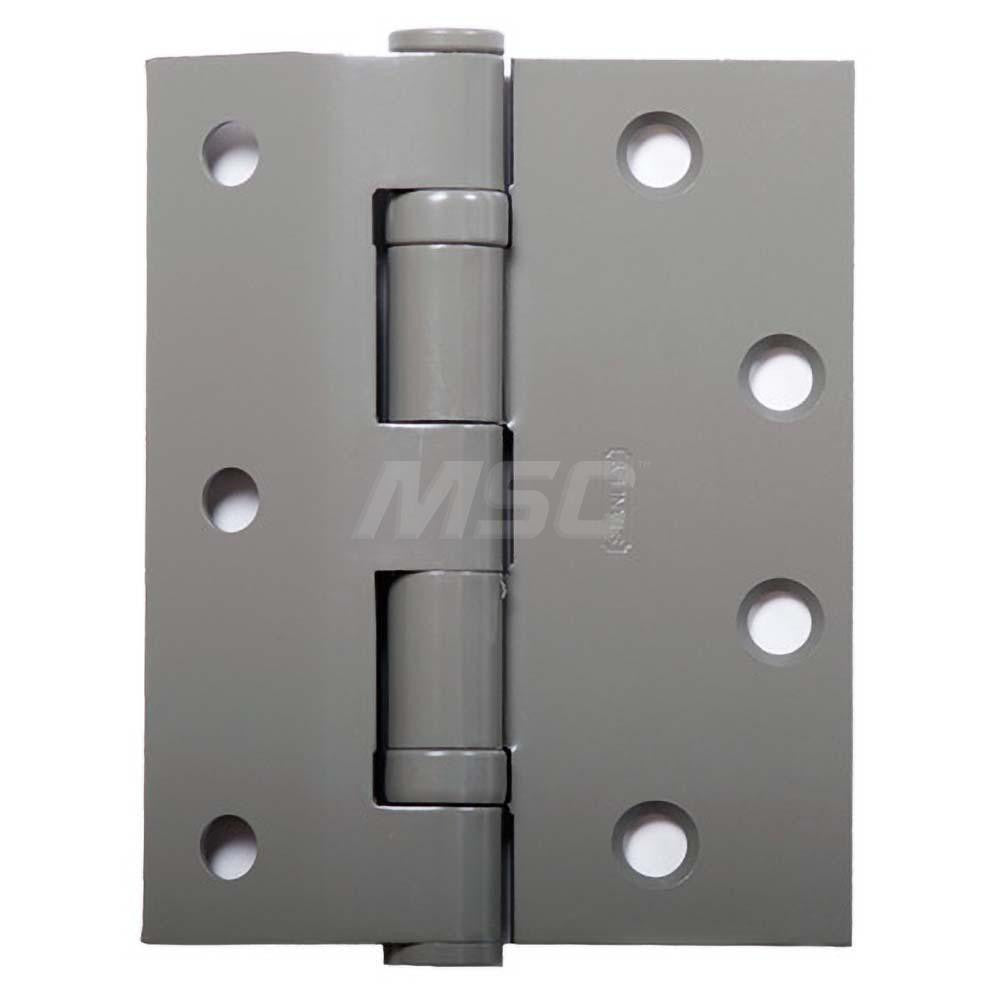

The BEST 711061682 is a full mortise commercial hinge designed for heavy-duty door applications in commercial construction and renovation. Constructed from steel with a prime coat grey finish, it features a stainless steel pin and a 5-knuckle barrel for smooth, durable operation. The door leaf measures 4.5 inches tall by 2 inches wide, matching the frame leaf at 4.5 inches by 2 inches. With a 360-degree range of motion and 8 mounting holes, this hinge is built to meet the demands of high-traffic commercial environments. It is BHMA certified and meets ANSI A8111 standards, making it suitable for code-compliant installations.

This hinge is intended for full mortise installation on commercial-grade wood and metal doors. Full mortise hinges are recessed into both the door edge and the door frame, providing a flush, clean appearance and a strong mechanical connection. Typical applications include commercial office doors, institutional entryways, and other interior or exterior door assemblies where a mortise-style hinge is specified by the architect or hardware schedule. Licensed carpenters, door hardware installers, and general contractors handle installation of this type of hinge on new construction and retrofit projects.

Key Features

• Full mortise design for flush, recessed installation on door edge and frame
• Steel hinge body with prime coat grey finish ready for field painting
• Stainless steel pin for corrosion resistance and long service life
• 5-knuckle barrel with 360-degree range of motion
• 8 mounting holes for secure, load-bearing fastening
• BHMA certified to ANSI A8111 for commercial door hardware compliance

Compatibility

Compatible with wood and metal commercial doors requiring a full mortise hinge. Designed as an OEM-style replacement or new-installation hinge for commercial door assemblies specifying a 4.5 inch by 4 inch full mortise steel hinge per ANSI A8111 and BHMA standards.

Installation Notes

Installation should be performed by a qualified carpenter or door hardware technician familiar with commercial door hardware specifications. Mortise the hinge pocket in both the door edge and the frame jamb to the exact leaf dimensions before fastening. Ensure the door and frame are properly supported and all fasteners are fully seated before cycling the door. Verify compliance with applicable building codes and the project hardware schedule prior to installation.
