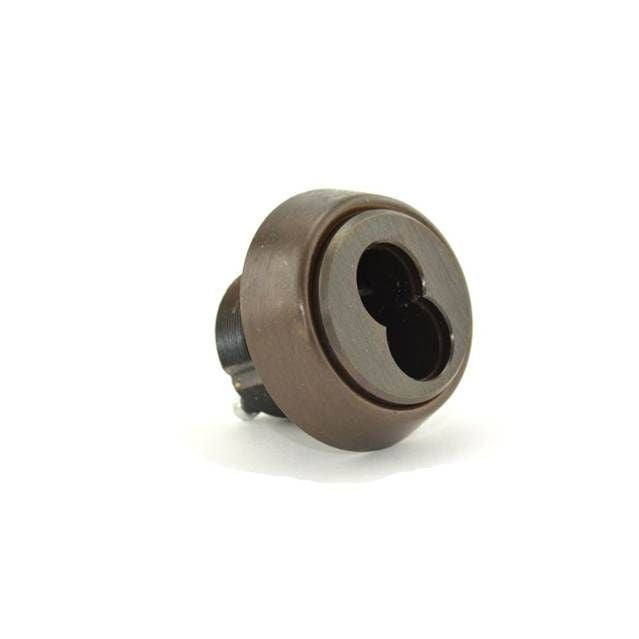

Best 1E74C181RP3613 7 Pin Mortise Cylinder Housing

Product Description

The BEST 1E74C181RP3613 is a 7-pin standard mortise cylinder housing configured with an Adams Rite cam and retaining ring, finished in oil rubbed bronze. This cylinder housing is a core component in commercial door locking systems, providing the mechanical interface between the key core and the mortise lock body. It is designed for facilities where interchangeable core systems or masterkey programs are in use. Licensed locksmiths and commercial door hardware technicians are the primary installers. The oil rubbed bronze finish coordinates with matching door hardware in commercial and institutional settings. The unit ships individually and measures 2.7 inches in length by 1.8 inches in width by 1.8 inches in height.

This cylinder housing is suited for commercial and institutional applications where mortise locksets are the standard door hardware configuration. It fits into standard mortise lock bodies that accept Adams Rite cam geometry. Typical installations include office buildings, schools, healthcare facilities, and government properties running BEST interchangeable core or masterkey programs. The retaining ring secures the cylinder within the mortise lock case during installation and normal operation.

Key Features

• 7-pin cylinder configuration for enhanced key control in masterkey systems
• Adams Rite cam geometry for compatibility with mortise lock bodies requiring that cam profile
• Retaining ring included for secure seating within the mortise lock case
• Oil rubbed bronze finish for aesthetic coordination with commercial door hardware
• Sold individually, suited for single-unit replacement or new installation
• Compact form factor at 2.7 inches length for standard mortise pocket dimensions

Compatibility

Designed for use with mortise lock bodies that accept an Adams Rite cam profile. Intended for installation within BEST interchangeable core and masterkey system architectures on commercial and institutional door hardware. Confirm cam profile and core format requirements before ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial mortise lock systems. Secure the door in an open position and disengage any latch or deadbolt before removing or installing the cylinder housing. Verify that the Adams Rite cam orientation is correct for the specific mortise lock body before fully seating the cylinder. Follow applicable local building and security codes governing lock hardware replacement in commercial or institutional facilities.
