Bessey STB36 Super Tuff Clamp (36 in)

Product Description

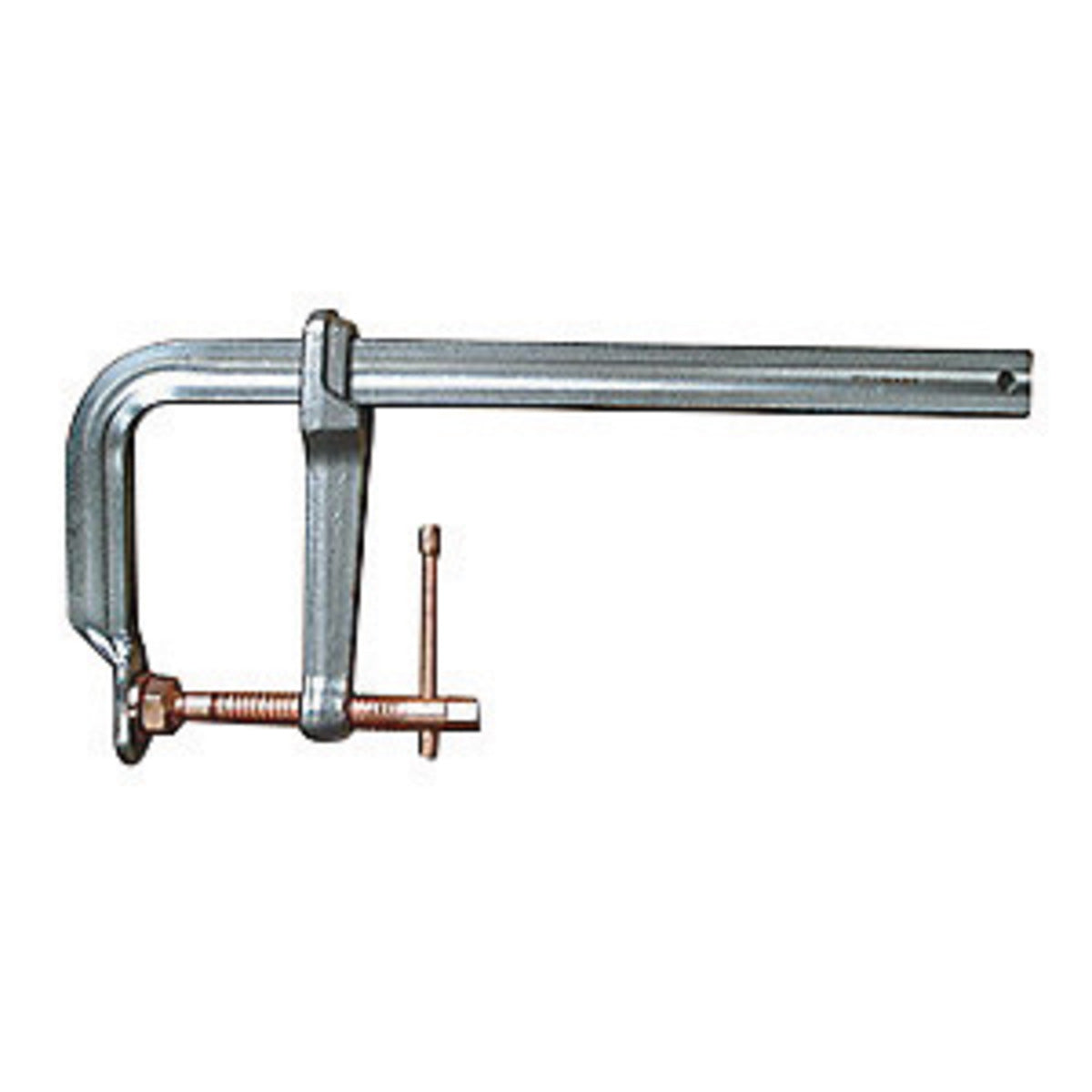

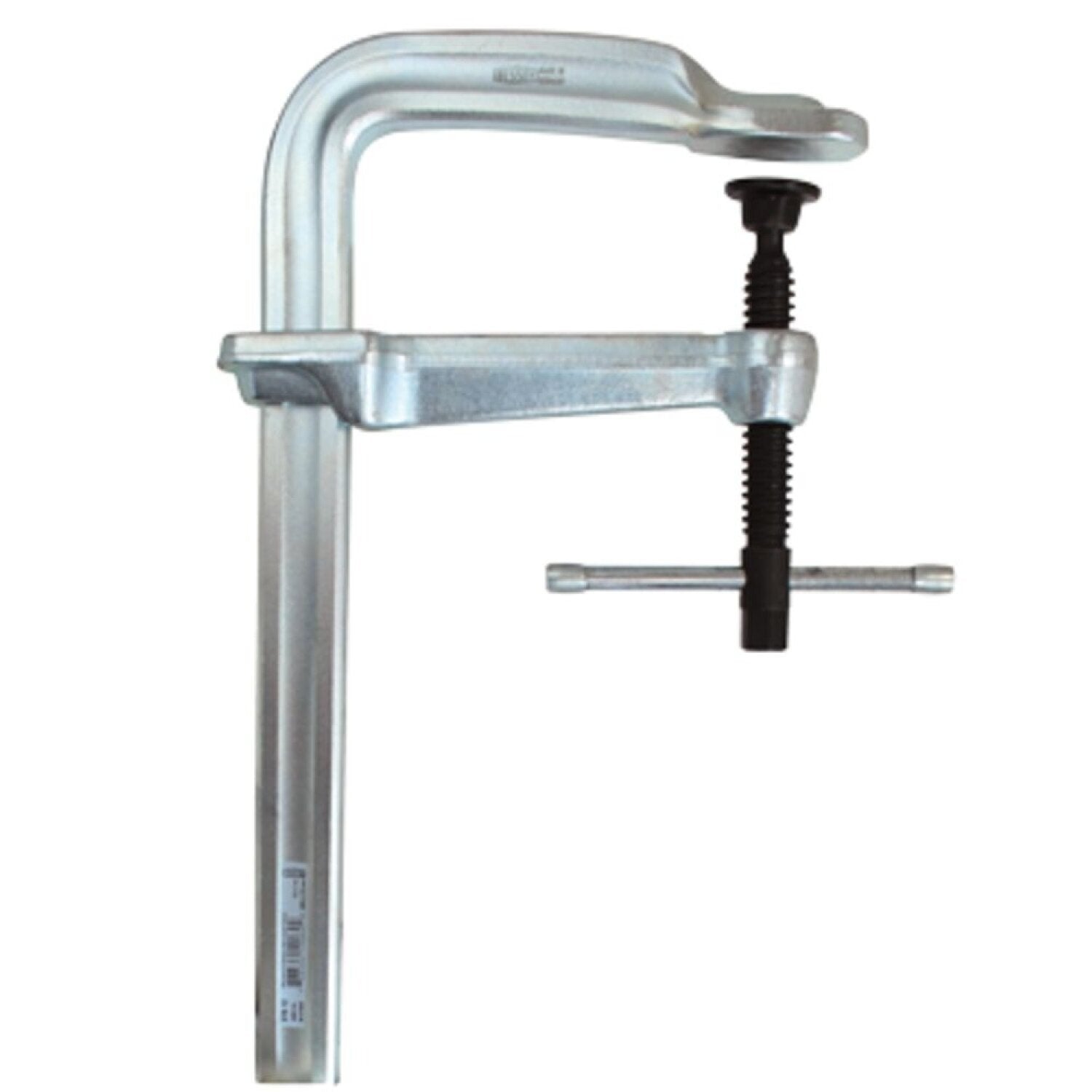

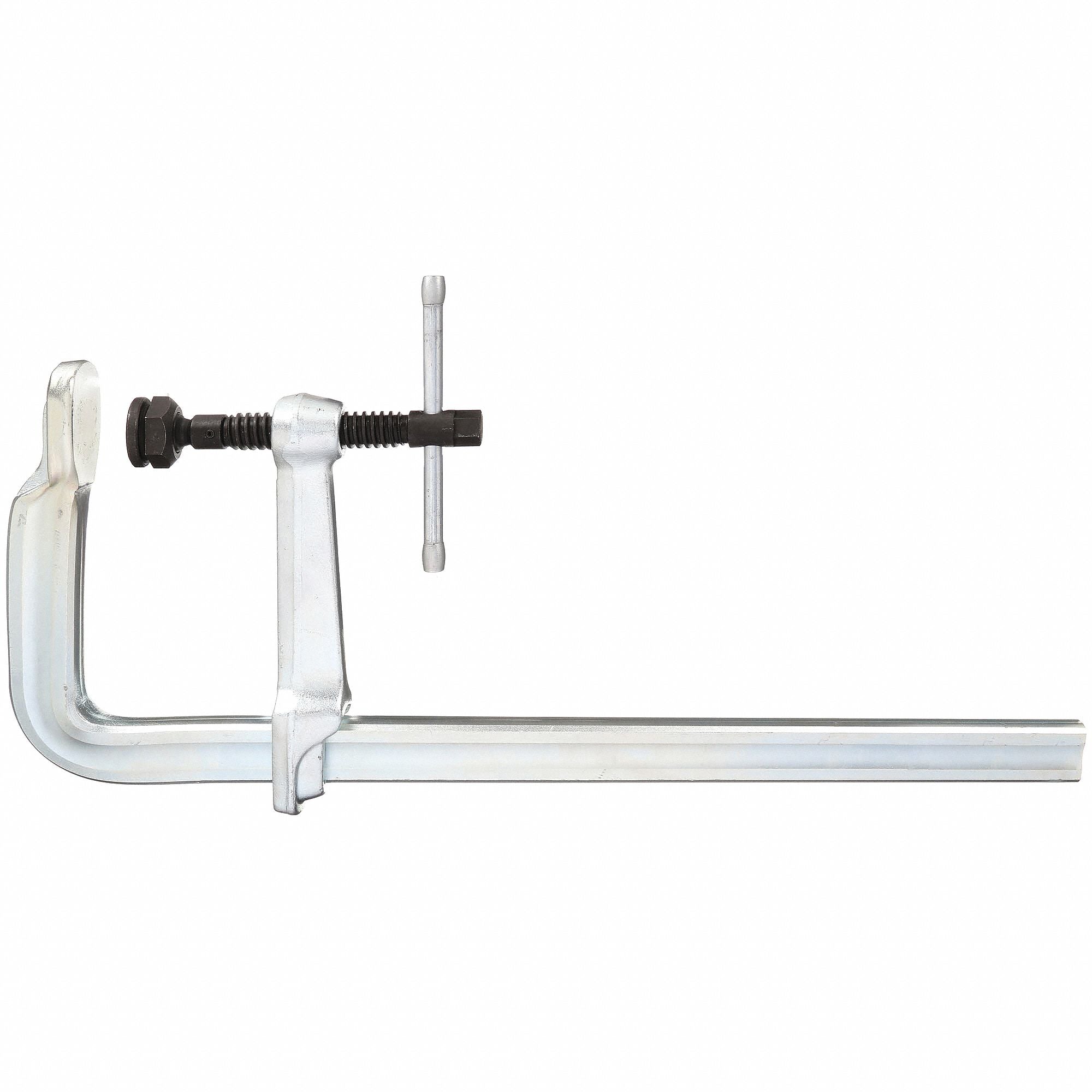

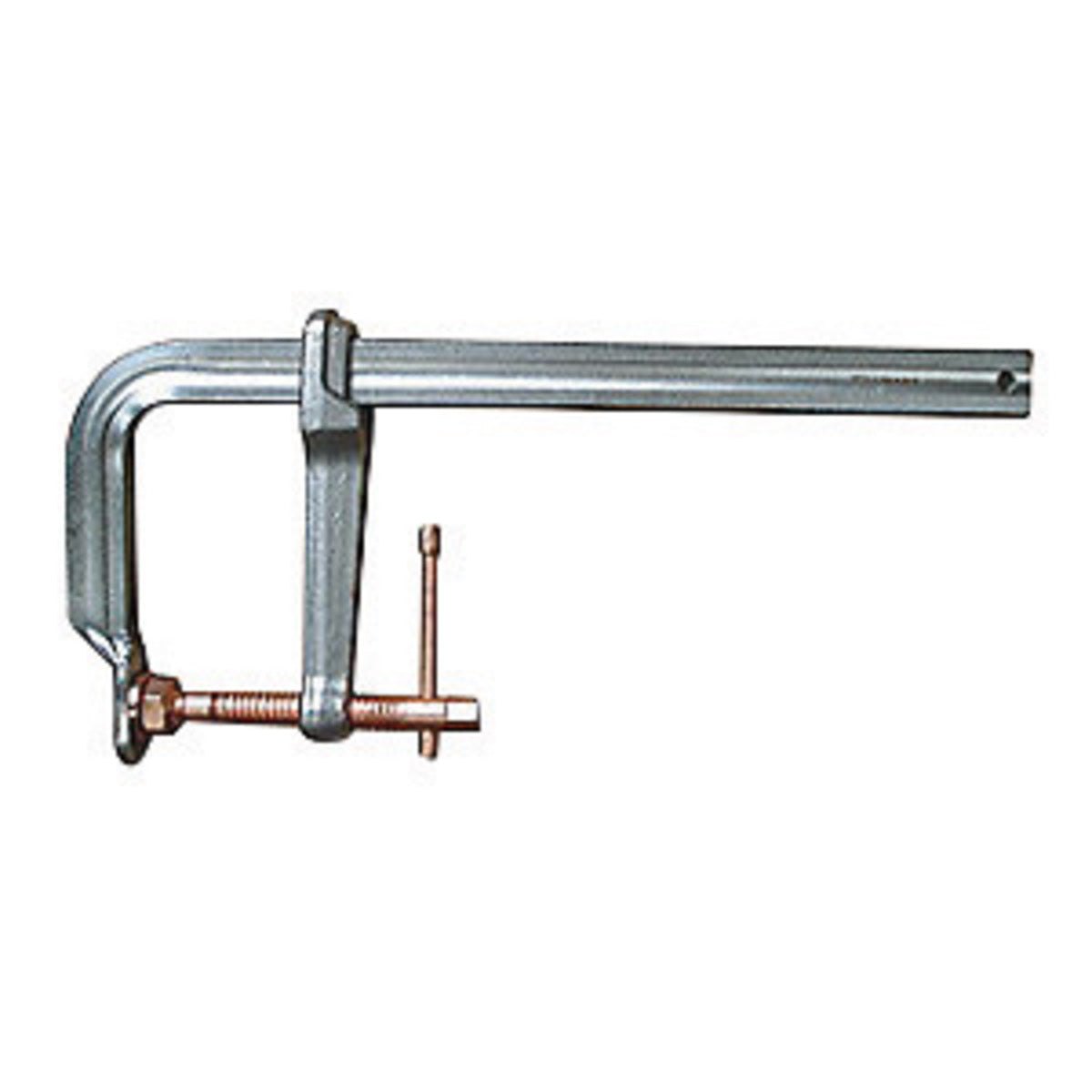

Bessey STB36 is a Super Tuff F-style bar clamp with a 36-inch maximum jaw opening and a 7-inch throat depth. The clamp is constructed from steel with a forged sliding arm, a heat-treated high-carbon Acme threaded spindle with a spatter-resistant finish, and a sliding T-handle sized to the load. It provides high clamping force for holding workpieces during cutting, drilling, welding, and assembly tasks.

• 36 in maximum jaw opening with 7 in throat depth and up to 4,880 lb clamping force
• Steel construction with forged sliding arm, 1-5/8 in bar thickness, and swivel jaw pads
• Heat-treated high-carbon Acme threaded spindle, spatter-resistant finish, and sliding T-handle

Product Highlights

36 in jaw opening; 7 in throat; 4,880 lb clamping force; steel F-style bar clamp with sliding T-handle

Product Information

Standard Information

• Brand: BESSEY
• Manufacturer Part Number: STB36
• Country of Origin: Germany

Technical Specifications

• Brand: Bessey
• Manufacturer Part Number: STB36
• Model: STB-36
• Clamp Type: F-style bar clamp
• Maximum Jaw Opening: 36 in
• Throat Depth: 7 in
• Clamping Force: 4,880 lb
• Material: Steel
• Bar Material: Steel
• Bar Thickness: 1-5/8 in
• Handle Style: Sliding T
• Handle Material: Forged steel
• Spindle Material: High carbon
• Spindle Finish: Spatter-resistant
• Slide Mechanism: Clutch
• Jaw Pad Type: Swivel
• Duty Rating: Extra heavy duty
• Weight: 20.60 lb
• Country of Origin: Germany
• UPC: 788502190664
