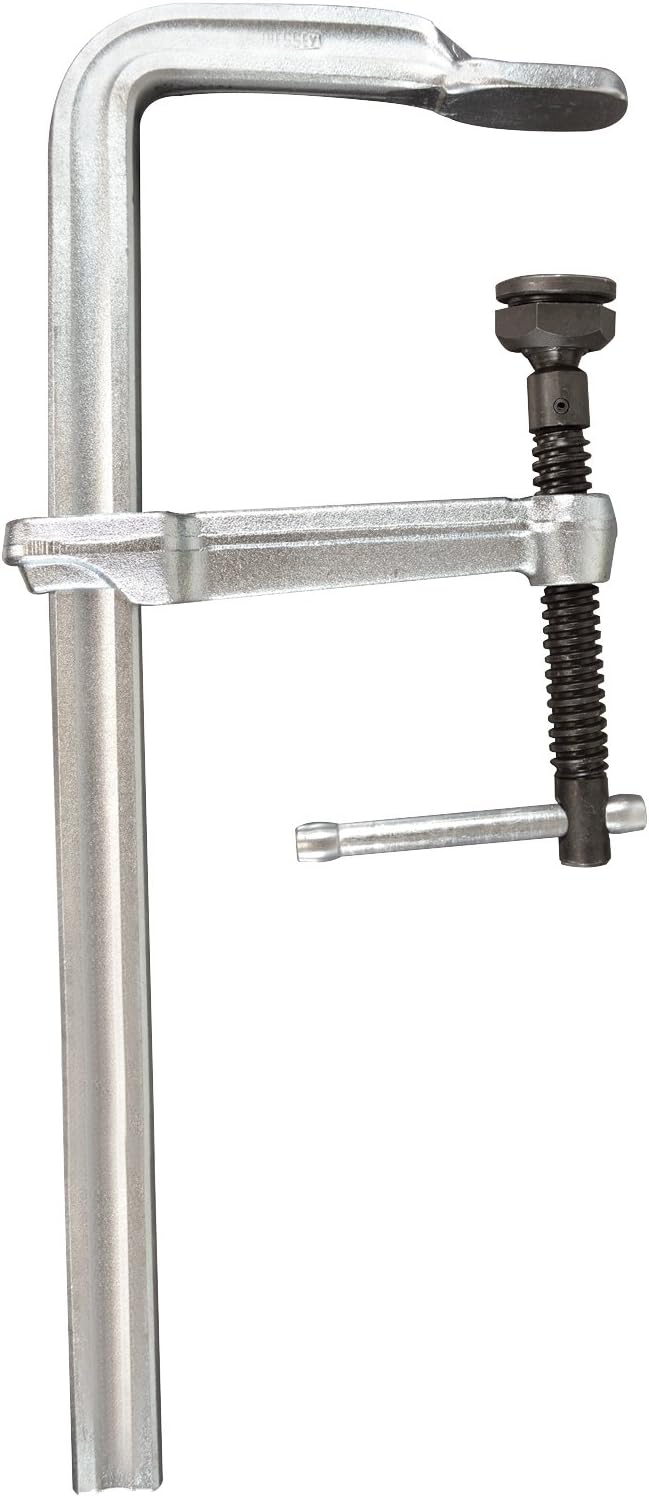

Bessey GSM30 All Steel Bar Clamp Heavy Duty 12 Inches 5 1/2 Inches Throat 2,660 lb Load Capacity

Product Description

The Bessey GSM30 All Steel Bar Clamp is a heavy-duty tool designed for professional use. This clamp features a high carbon ACME threaded spindle for added durability and a high load capacity, making it ideal for welding, assembly, and general-purpose clamping tasks.

• 12-inch bar clamp made of all steel
• 5 1/2-inch throat depth
• 2,660-pound load capacity

Product Highlights

This bar clamp is designed for heavy-duty applications, featuring a classiX heavy-duty pad with swivel action for versatility. The tempered cold drawn forged steel bar provides a strong grip and can handle demanding tasks.

Product Information

Standard Information

• Manufacturer: Bessey
• Brand: Bessey
• MPN: GSM30
• UPC: 706398061233

Technical Specifications

• Bar Thickness: 1 3/16 inches
• Bar Width: 19/32 inches
• Body Finish: Satin
• Body Material: Steel
• Capacity [Nom]: 12 inches
• Handle Material: Tempered Steel
• Handle Type: Sliding Pin T-Handle
• Height [Nom]: 1.578 inches
• Length [Nom]: 16.944 inches
• Load Capacity [Nom]: 2,660 lb
• Material: Steel
• Opening Size [Max]: 12 inches
• Spindle Diam: 0.78 inches
• Style: Heavy-Duty Pad
• Throat Depth [Nom]: 5 1/2 inches
• Width [Nom]: 8 1/4 inches
• Wt.: 7 lb
• Swivel Type: Replaceable
• Jaw Pad Type: Swivel
• Clamp Face [In.]: 1-5/16 x 2-5/8
• Max Throat Depth: Greater than 5 inches
• Slide Mechanism: Clutch
• Spindle Finish: Spatter-Resistant
• Jaw Pad Width: 1 1/2 inches
• Clamping Capacity: 12 inches
• Clamping Force: 2,660 lb
• Handle Length: 4 11/16 inches
• Screw Size: 0.775 inches
• Sliding Mechanism: Bar Slide
• Spindle Diameter: 13/16 inches
• Spindle Material: High Carbon
• Nominal Clamping Pressure: 2,660 lb
• Country of Origin: Germany
