Bernzomatic UL100 Pencil Flame Torch Kit 2,500 Btu/h (14.1 oz Cylinder) UL2317

Brand: BERNZOMATIC
SKU: UL100
Availability: In Stock

Ships same day if ordered by 12 pm

$86.65
$86.65
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

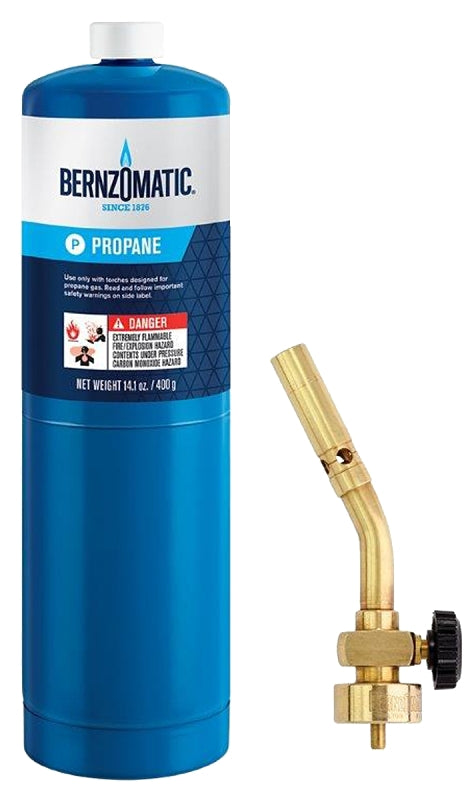

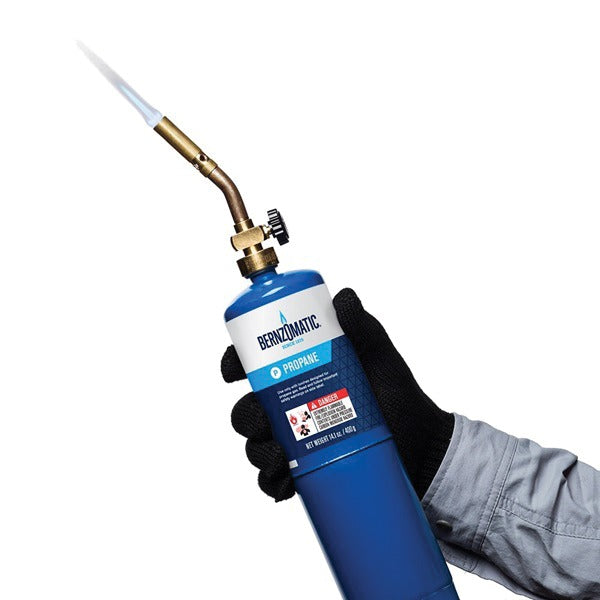

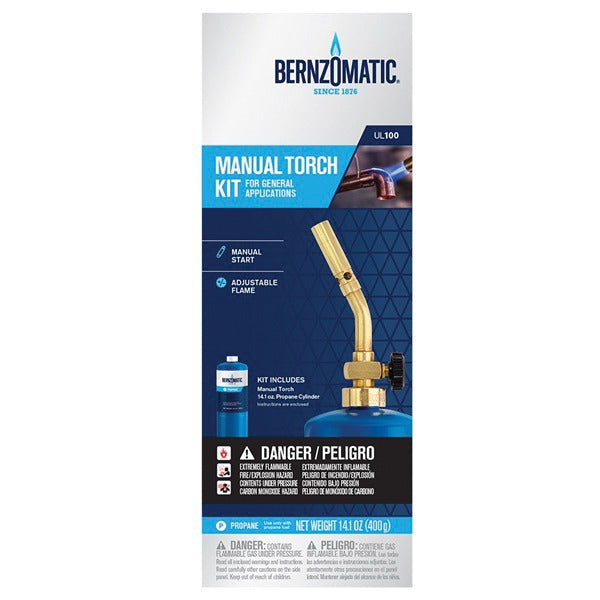

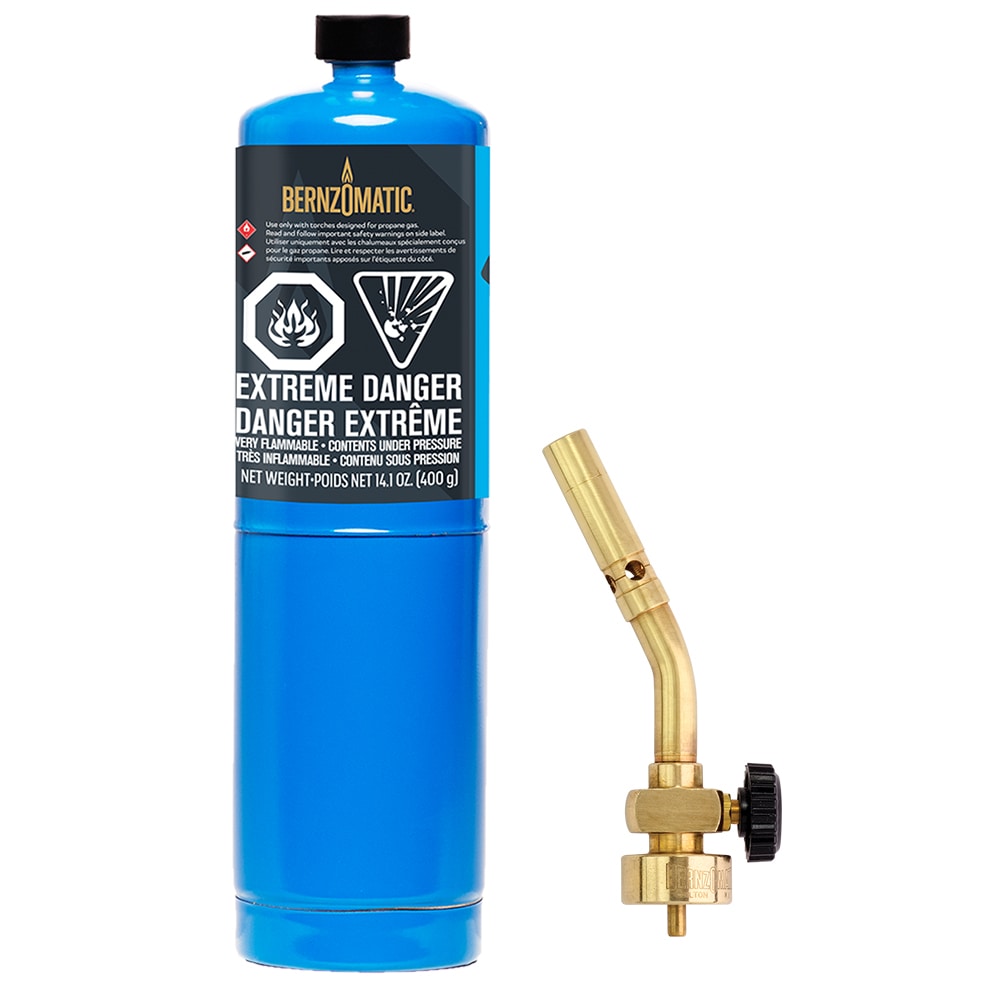

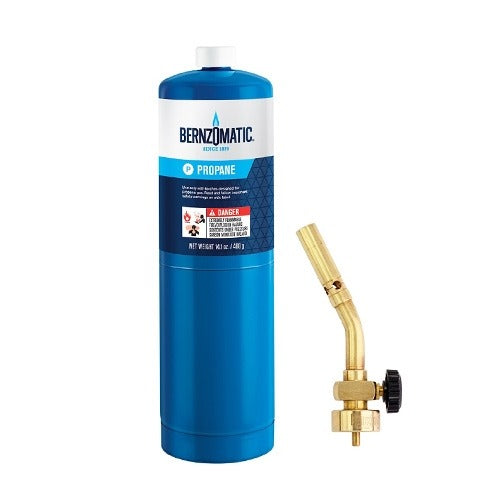

The Bernzomatic UL100 is a propane pencil flame torch kit that includes a UL2317 torch head and a 14.1 oz propane cylinder. The manual-ignition brass torch produces an approximately 1/2 inch pencil flame, adjustable via a control valve, with a heating capacity of 2,500 Btu/h and a maximum flame temperature of 3,400 degrees F. It is designed for upright use and intended for small-diameter soldering, thawing, melting, and light brazing.

  • Includes UL2317 torch head and 14.1 oz propane cylinder; compatible with 14.1 oz and 16 oz cylinders
  • Brass torch head and brass construction; produces approximately a 1/2 in pencil flame with a fixed tip
  • Manual ignition (external spark lighter required) with adjustable flame control; heating capacity 2,500 Btu/h and max temperature 3,400 degrees F

Product Highlights

Pencil flame torch kit with brass construction, adjustable flame control, 14.1 oz propane cylinder, 2,500 Btu/h heating, 3,400°F max

Product Information

Standard Information

  • Brand: BERNZOMATIC
  • Manufacturer Part Number: UL100
  • Country of Origin: United States
Technical Specifications
Brand
Bernzomatic
MPN
UL100
Product Type
Hand torch and cylinder kit
Model / Series
UL100
Torch Series
Classic
Fuel
Propane
Includes
UL2317 torch and 14.1 oz propane cylinder
Number of Pieces
2
Flame Type
Pencil
Flame Width
Approximately 1/2 in
Tip Type
Fixed tip
Flame Control
Adjustable flame control valve
Ignition Type
Manual (external spark lighter required)
Material
Brass
Designed For
Upright use
Heating Capacity
2,500 Btu/h
Maximum Flame Temperature
3,400 degrees F
Cylinder Capacity
14.1 oz (propane canister, nominal fuel weight)
Compatible Cylinder Sizes
14.1 oz, 16 oz
Applications
Small-diameter soldering, thawing, melting, light brazing
Soft Solder Capacity (Propane)
Up to 3 in
Silver Braze Capacity (Propane)
Up to 1 in
Country of Origin
United States
Assembled Weight
2.3 lb
Assembled Height
8.5 in
Assembled Width
4.7 in
Assembled Depth
3.8 in
