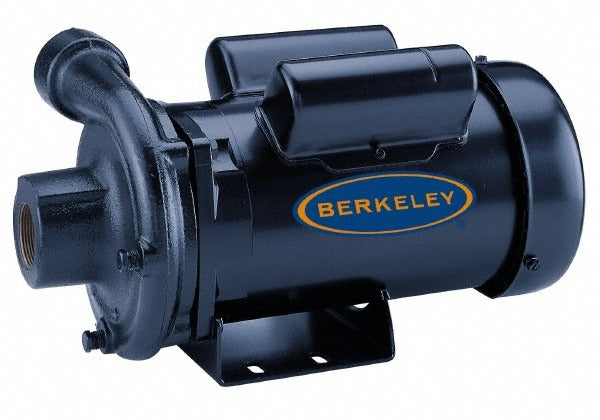

Berkeley S39538 Ac Straight Pump 2 Hp 230/460V 3 Phase

Product Description

The BERKELEY S39538 is a straight centrifugal pump rated at 2 horsepower, designed for demanding water transfer and circulation applications. It operates on 208 to 230/460 volt, 3-phase AC power at 60 Hz, making it suited for commercial and industrial service environments. The pump moves up to 83 GPM at 20 feet of head and maintains a maximum head pressure of 131 psi. The Totally Enclosed Fan-Cooled (TEFC) motor protects internal windings in wet or dusty installation areas. Licensed plumbers, pipefitters, and irrigation contractors are the typical installers for this class of pump.

The S39538 is used in commercial irrigation, industrial fluid transfer, water booster, and light-duty dewatering applications where 3-phase power is available. The 1-1/2 inch FPT inlet and 1-1/4 inch FPT outlet allow straightforward threaded pipe connections in new or retrofit installations. With a maximum fluid temperature rating of 225 degrees F, this pump can handle hot-water service in addition to ambient-temperature applications.

Key Features

• 2 hp TEFC motor rated for 208 to 230/460 volt, 3-phase, 60 Hz power
• Cast iron housing provides corrosion resistance and durability in industrial environments
• Brass impeller resists wear and dezincification in water service
• Maximum head pressure of 131 psi supports elevated or long-run piping systems
• Flow rate of 83 GPM at 20 feet of head for high-volume transfer needs
• Maximum fluid temperature of 225 degrees F allows hot-water service applications

Compatibility

Designed as an OEM-style straight centrifugal pump for 3-phase commercial and industrial piping systems requiring a 1-1/2 inch FPT inlet and 1-1/4 inch FPT outlet configuration.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with 3-phase electrical systems and commercial piping codes. Disconnect and lock out all electrical power before servicing or mounting the pump. Ensure the inlet and outlet piping is properly supported to avoid mechanical stress on the pump housing. Verify that the available 3-phase voltage matches the motor nameplate rating before energizing.
