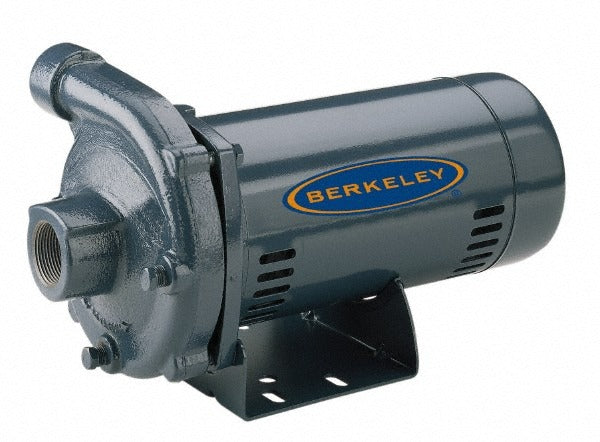

Berkeley S39529 Ac Straight Pump 1/2 Hp 115/230V

Product Description

The BERKELEY S39529 is a single-phase AC straight pump designed for water transfer and circulation in residential and light commercial applications. Rated at 1/2 horsepower and dual-voltage capable at 115/230 volts, this pump delivers reliable performance up to a maximum head pressure of 83 psi. The cast iron housing provides durability in demanding service environments, while the brass impeller resists corrosion in clean water systems. The 1-1/4-inch FPT inlet and 1-inch FPT outlet suit standard pipe connections. Licensed plumbers and pump contractors typically handle installation and commissioning of this unit.

This pump is suited for residential water systems, irrigation, and light industrial fluid transfer where a compact, direct-drive straight pump configuration is required. It operates on 60 Hz single-phase power and handles fluid temperatures up to 225 degrees F, making it appropriate for a range of hydronic and water supply applications. The open drip-proof (ODP) motor design is intended for indoor or protected outdoor installations where the motor is not exposed to direct moisture or weather.

Key Features

• Dual voltage rated at 115/230 volts for flexible electrical service connection
• 1/2 hp ODP motor for efficient single-phase operation
• Cast iron housing for durability in demanding pump service environments
• Brass impeller for corrosion resistance in clean water service
• FPT x FPT end connections for straightforward pipe integration
• Flow rates of 37 GPM at 20 feet of head, 31 GPM at 40 feet, and 19 GPM at 60 feet

Compatibility

Designed as an OEM-style replacement or direct installation straight pump for single-phase residential and light commercial water supply and circulation systems requiring a 1/2 hp, 115/230-volt AC pump with a 1-1/4-inch inlet and 1-inch outlet.

Installation Notes

Installation should be performed by a licensed plumber or pump technician in accordance with applicable local plumbing codes. Shut off the water supply and de-energize the circuit before beginning any pump installation or service work. Ensure all FPT pipe thread connections are properly sealed with thread sealant rated for the service fluid and temperature. Verify the electrical supply voltage matches the selected motor wiring configuration before energizing.
