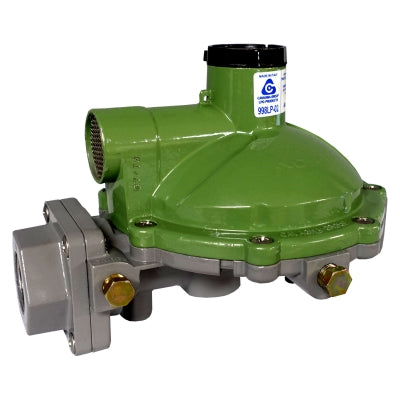

Bergquist 998lp-02 Low Pressure Propane Regulator

Product Description

The BERGQUIST 998lp-02 is a low pressure propane regulator designed to control and deliver propane gas at a stable output pressure of 11 inches water column (WC). Built in a straight-through configuration with 3/4 inch inlet and 3/4 inch outlet connections, it handles a maximum capacity of 1,400,000 BTU/h. This regulator is suited for high-demand propane systems where consistent downstream pressure is critical. Licensed gas technicians and plumbers install this type of regulator as part of commercial or high-output residential propane distribution systems.

The 998lp-02 is appropriate for propane supply systems requiring a straight-through flow path and large-volume gas throughput. Its 1,400,000 BTU/h capacity rating makes it suitable for installations serving multiple appliances or high-BTU commercial equipment. The 3/4 inch connection size fits standard propane distribution piping used in both commercial kitchen, agricultural, and industrial heating applications.

Key Features

• 11 inches WC regulated output pressure for stable downstream delivery
• 1,400,000 BTU/h maximum capacity for high-demand propane systems
• 3/4 inch x 3/4 inch straight-through connection configuration
• Low pressure design appropriate for second-stage or final-stage regulation

Compatibility

Designed as an OEM-style replacement or new-installation regulator for propane gas distribution systems using 3/4 inch pipe connections requiring low pressure, high-capacity regulation.

Installation Notes

Installation must be performed by a licensed plumber or gas technician in accordance with IFGC requirements and local gas codes. Shut off the propane supply at the source before disconnecting or installing any regulator. Verify all fittings are leak-tested with an approved gas leak detection solution after installation. Do not overtighten threaded connections or use incompatible thread sealant on gas fittings.

Technical Specifications

• Output Pressure: 11 inches WC
• Maximum Capacity: 1,400,000 BTU/h
• Inlet Connection: 3/4 inches
• Outlet Connection: 3/4 inches
• Flow Configuration: Straight Through
• Gas Type: Propane (LP)

Standard Information

• Brand: BERGQUIST
• Manufacturer Part Number: 998lp-02
