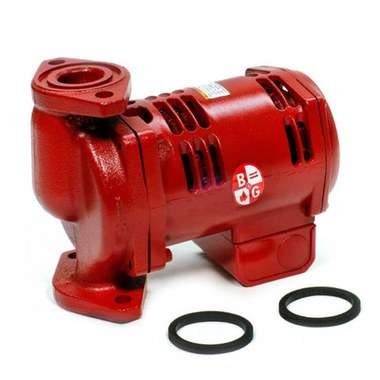

BELL & GOSSETT PL-55(1BL032) Series PL Cast Iron Close Coupled Booster Pump / Inline Circulator 2/5 HP

Product Description

BELL & GOSSETT PL-55(1BL032) is a series of cast iron close coupled booster pump designed for reliability and efficiency. This pump operates at 2/5 HP and achieves a speed of 3250 RPM at 115 volts, making it suitable for various applications including hydronic, radiant, and geothermal heating and cooling systems.

• Permanently lubricated for maintenance-free operation
• Quiet and reliable during use
• Available in multiple NPT flange sizes: three-fourth, one, one and one-quarter, one and one-half inches

Product Highlights

This booster pump is specifically designed to handle dirty water conditions effectively and serves as a superior alternative to wet rotor pumps, offering greater efficiency.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• Manufacturer: BELL & GOSSETT

Technical Specifications

• Model: PL-55 (1BL032)
• HP: 2/5
• RPM: 3250
• Voltage: 115
• F.L. Amps: 4.7
• Max Operating Temperature: 225 degrees Fahrenheit
• Max Working Pressure: 150 psig
• Approximate Shipping Weight: 13.1 lbs
• Flange Size NPT: 3/4, 1, 1-1/4, 1-1/2
• Pump Body Material: Cast Iron
