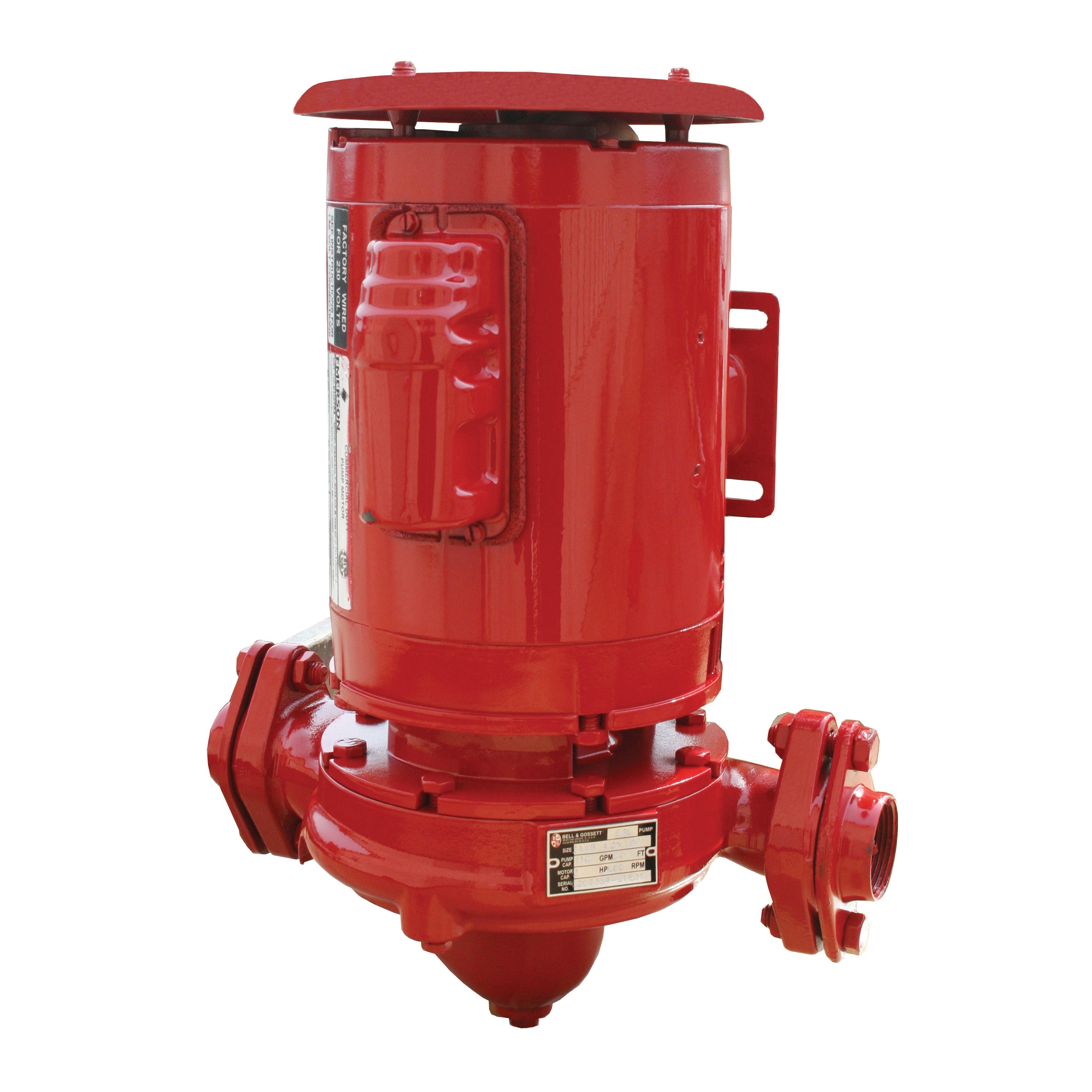

BELL & GOSSETT KX-7B BELL & GOSSETT Series e-80 Pump Size 2 x 2 x 7B

Product Description

The BELL & GOSSETT KX-7B Series e-80 pump is designed for both horizontal and vertical in-line mounting. This pump boasts a cast iron volute construction that is durable and capable of withstanding a working pressure of 175 psi. It features an internally flushed mechanical seal, which is supported by anti-vortex baffles and an armored flush line. This design ensures effective cooling and lubrication of the water seal.

• Designed for hydronic heating and cooling systems.
• Back pull-out design for straightforward maintenance.
• Constructed with a stainless steel impeller for quiet operation.

Product Highlights

This pump simplifies installation and maintenance while providing reliable performance for various heating and cooling applications.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• MPN: KX-7B

Technical Specifications

• Model: 2 x 7B
• Horsepower: 5 HP
• RPM: 3550
• Phase: 3 PH
• Construction: Cast iron volute
• Working Pressure: 175 psi
